Question please show all work and sketch of P-V & T-Vdiagrams 1. Ammonia contained in a piston-cylinder assembly, initially saturated vapor at 0°F, undergoes an isothermal process during which its volume (a) doubles (b) reduces by a half. For each case, fix the final state by giving the quality or pressure, in lb.f/in.2, as appropriate. Assume ideal gas behavior when the volume doubles in the first process. Locate the initial and final states for both conditions on the sketches of the p-v and T-v diagrams.
CT1QCF The Asker · Mechanical Engineering
please show all work and sketch of P-V & T-V
diagrams

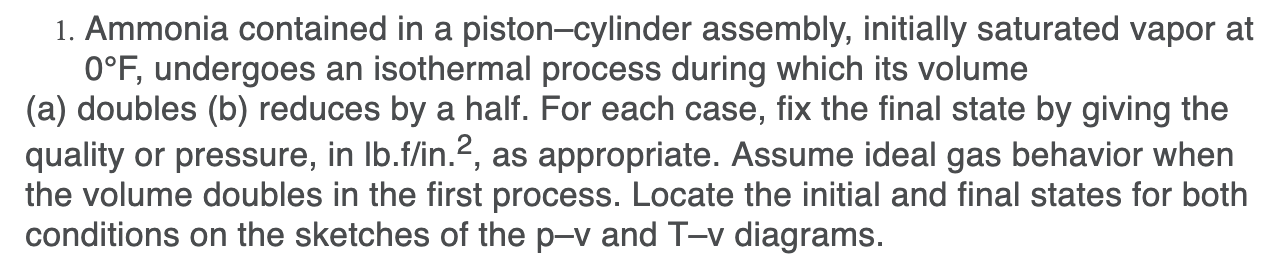

Transcribed Image Text: 1. Ammonia contained in a piston-cylinder assembly, initially saturated vapor at 0°F, undergoes an isothermal process during which its volume (a) doubles (b) reduces by a half. For each case, fix the final state by giving the quality or pressure, in lb.f/in.2, as appropriate. Assume ideal gas behavior when the volume doubles in the first process. Locate the initial and final states for both conditions on the sketches of the p-v and T-v diagrams.
More Transcribed Image Text: 1. Ammonia contained in a piston-cylinder assembly, initially saturated vapor at 0°F, undergoes an isothermal process during which its volume (a) doubles (b) reduces by a half. For each case, fix the final state by giving the quality or pressure, in lb.f/in.2, as appropriate. Assume ideal gas behavior when the volume doubles in the first process. Locate the initial and final states for both conditions on the sketches of the p-v and T-v diagrams.
Community Answer
A8RMUG
ACCORDING TO THE DATA GIVEN IN THE QUESTION, Given, AmmoniaSaturated vapor x_(1)=1{:[T_(1)=0^(@)F],[T=C]:}a) -V_(2)=2V_(1)b) -V_(2)=(1)/(2)V_(1)from the table, P_(1)=30.416lbf//in^(2) T_(1)=OF quad:.quadv_(1)=v_(g)=9*11ft^(3)//lbAt P_(y)=16lbf//in^(2);V_(y)=17.701ft^(3)//kgBy linear interpolation,b){:[(P_(x)-P_(2b))/(P_(x)-P_(y))=(v_(x)-v_(1b))/(v_(x)-v_(y))],[P_((1)b)=P_(x)-(P_(x)-P_(y))xx(v_(x)-v_(1b))/(v_(x)-v_(y)) ... See the full answer
