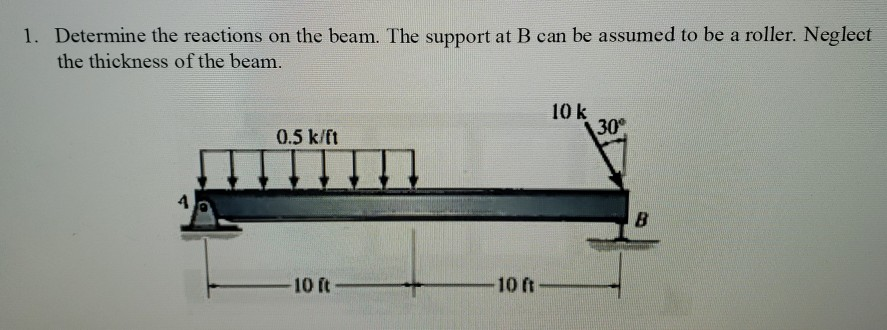

\Sigma H=0 \Rightarrow about point " A "\begin{array}{c}H_{A}+10 \cos 60^{\circ}=0 \\H_{A}=-10 \cos 60^{\circ} \mathrm{K} \\H_{A}=-5 \mathrm{kft} \\\Sigma V=0 \Rightarrow V_{A}+V_{B}-10 \sin 30^{\circ}-0.5 \times 10=0 \\V_{A}+V_{B}=10 \mathrm{Kft}-10 \\M_{B}=0 \quad-0.5 \times 10 \times 15-10 \mathrm{sin} 30^{\circ}=0 \\V_{A} \times 20-V_{A}=75+5 \\V_{A}=\frac{80}{20} \mathrm{kft}\end{array}Substitute V_{A} in \varepsilon q (1)\begin{aligned}u+V_{B} & =10 \mathrm{kft} \\v_{B} & =6 \mathrm{kft}\end{aligned}Reactions:\begin{aligned}H_{A} & =-5 \mathrm{kft} \\V_{A} & =4 \mathrm{kft} \\V_{B} & =6 \mathrm{kft}\end{aligned} ...
