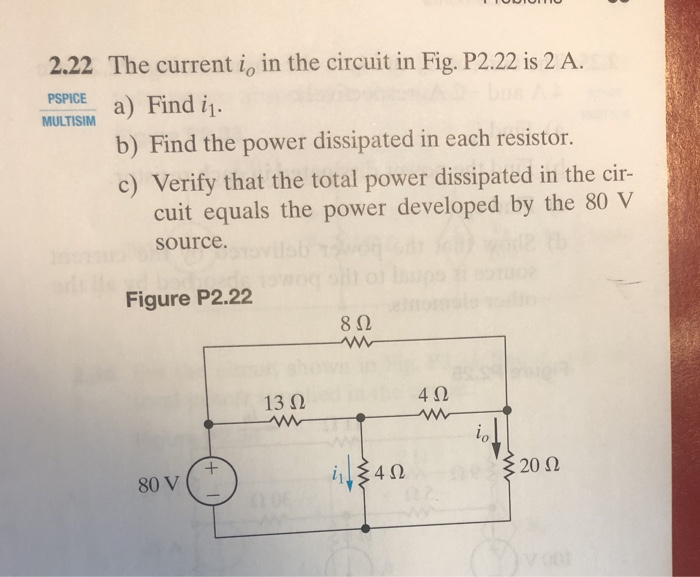

Question Can someone help me solve this?using psice 2.22 The current i, in the circuit in Fig. P2.22 is 2 A. PSPICE a) Find i1. MULTISIM b) Find the power dissipated in each resistor. c) Verify that the total power dissipated in the cir- cuit equals the power developed by the 80 V source. Figure P2.22 812 1322 412 3 2012 80 v (+) 342
