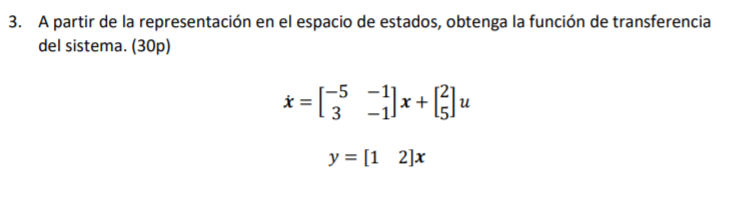

determine the transfer function of the system described by the state-space representation shown below

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

State space representation to transfer function \RightarrowState space form, and order is n\begin{array}{l}\dot{x}=A x+B U \\y=C x+D U\end{array}Here A - system metrix ( n \times n )B - imput matrix (n \times m)C - output matrix (PXh)D - Feed back or foruard matrix (P \times m)taking laplace transform of equation(i), (ii)\begin{aligned}s X(s)-X(0) & =A X(s)+B U(s) \\Y(s) & =C X(s)+D U(s)\end{aligned}taking zero initial condition x(0)=0\begin{array}{l}S X(s)=A X(s)+B U(s) \ldots \text { (iii) } \\y(s)=c X(s)+D U(s) \ldots \text { (iv) }\end{array}transfor function H(s)=\frac{Y(S)}{V(S)}=\frac{\text { output }}{\text { inpeut }}we noed to find y(s) and v(s), so need to romove Qr x(s) from (iv) o (i), (ii), (iii), (iv)from equation ( iii)\begin{array}{l}S \times(S)-A X(S)=B U(s) \quad \text { [Here I indentity } \\(S I-A) X(S)=B U(S)\end{array}muliplying both side by (S I-A)^{-1}X(s)=(S I-A)^{-1} B U(s)Let say Q(S)=(S I-A)^{-1}X(s)=\phi(s) B U(s)put in equation (iv)\begin{array}{l}y(s)=C \phi(s) B U(s)+D U(s) \\y(s)=[c \phi(s) B+D] U(s)\end{array}H(s)=\frac{Y(s)}{u(s)}=C \Phi(s) B+DHere \phi(S)=(S I-A)^{-1}, and I is inelentity matrieSolution \Rightarrowgiven state space form\begin{array}{l}\dot{x}=\left[\begin{array}{cc}-5 & -1 \\3 & -1\end{array}\right] x+\left[\begin{array}{l}2 \\5\end{array}\right] u \\y=\left[\begin{array}{ll}1 & 2\end{array}\right] x\end{array}Here\begin{array}{l}A=\left[\begin{array}{rr}-5 & -1 \\3 & -1\end{array}\right]_{2 \times 2}, B=\left[\begin{array}{l}2 \\5\end{array}\right]_{2 \times 1} \\C=[1,2]_{1 \times 2}, D=[0]\end{array}First find \phi(s)=(s I-A)^{-1}dimension of I is same as A, so 2 \times 2\begin{array}{l}I=\left[\begin{array}{ll}1 & 0 \\0 & 1\end{array}\right], \quad S I=\left[\begin{array}{ll}S & 0 \\0 & S\end{array}\right] \\S I-A=\left[\begin{array}{ll}5 & 0 \\0 & S\end{array}\right]-\left[\begin{array}{cc}-5 & -1 \\3 & -1\end{array}\right] \\S I-A=\left[\begin{array}{cc}S+5 & +1 \\-3 & S+1\end{array}\right]\end{array}determinant of S I-A or |S I-A|\begin{array}{l}\phi(s) \\\end{array}Nou premultuplying by matrix C and post multiplying by matrix B\begin{array}{l}\left.c \phi(s)=\frac{1}{[(s+1)(s+5)+3}\right] \cdot[1,2]\left[\begin{array}{cc}s+1 & -1 \\3 & s+5\end{array}\right] \\=\frac{1}{[(s+1)(s+5)+3]} \cdot[s+1+6 \quad-1+2 s+10] \\\end{array}\begin{array}{l}=\frac{1}{[(s+1)(s+5)+3]} \cdot[(s+7) 2+(2 s+9) 5] \\c \phi(s) B=\frac{2 s+14+10 s+45}{(s+1)(s+5)+3}=\frac{12 s+59}{(s+1)(s+5)+3} \\H(s)=\text { transferfunction }=C \phi(s) B+D \\H(s)=\frac{12 s+59}{(s+1)(s+5)+3}+0 \\\end{array}Ans - state space form \dot{x}=\left[\begin{array}{c}-5-1 \\ 3-1\end{array}\right] x+\left[\begin{array}{l}2 \\ 5\end{array}\right] xy=\left[\begin{array}{ll}1 & 2\end{array}\right] xtransfer function =\frac{12 S+59}{(s+1)(s+5)+3} ...
