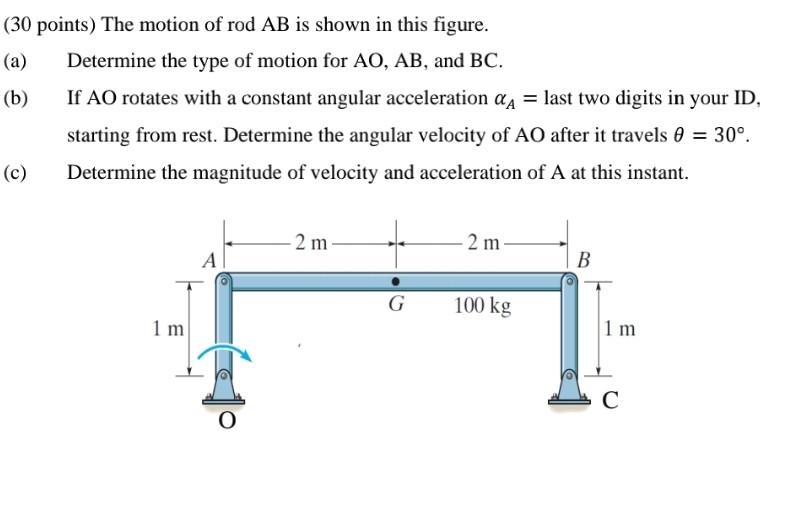

Question for b) alpha=50 (30 points) The motion of rod AB is shown in this figure. (a) Determine the type of motion for AO, AB, and BC. (b) If AO rotates with a constant angular acceleration & A = last two digits in your ID, starting from rest. Determine the angular velocity of AO after it travels 0 = 30°. (c) Determine the magnitude of velocity and acceleration of A at this instant. 2 m -2 m A B G 100 kg 1 m 1 m С O
FSXG4A The Asker · Physics
for b) alpha=50
Transcribed Image Text: (30 points) The motion of rod AB is shown in this figure. (a) Determine the type of motion for AO, AB, and BC. (b) If AO rotates with a constant angular acceleration & A = last two digits in your ID, starting from rest. Determine the angular velocity of AO after it travels 0 = 30°. (c) Determine the magnitude of velocity and acceleration of A at this instant. 2 m -2 m A B G 100 kg 1 m 1 m С O
More Transcribed Image Text: (30 points) The motion of rod AB is shown in this figure. (a) Determine the type of motion for AO, AB, and BC. (b) If AO rotates with a constant angular acceleration & A = last two digits in your ID, starting from rest. Determine the angular velocity of AO after it travels 0 = 30°. (c) Determine the magnitude of velocity and acceleration of A at this instant. 2 m -2 m A B G 100 kg 1 m 1 m С O
Community Answer
7EOHC0
Solukion:- Given that theThe kinetic diagram is{:[Aa^(100 xx9g)B],[mun omega^(2)=100 xx1xx4^(2)],[=1600N". "]:}a_(a)= accelaration of point a.Equation of motion{:[V_(A)=pi omega],[V_(A)=4m//s],[WAB=O" ( S nomation is taking place). "],[Ay+By=981N],[sum M=0],[rarr" Ay "xx2+By xx4=0],[Ay=2By],[:.3By=981],[By=32-7N quad&Ay=654 N]:} P.S: If you are having any doubt, please comment here, I will ... See the full answer
