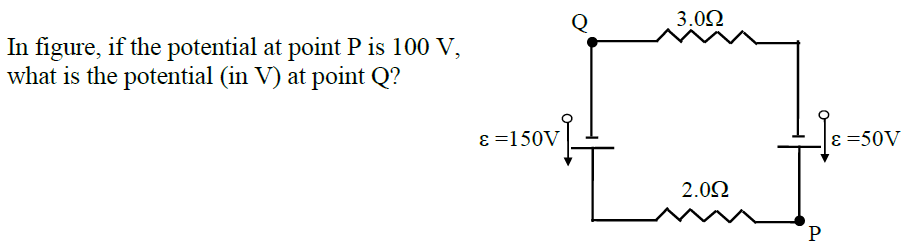

Step 1 Kirchhoff's voltage lawKirchhoff's voltage law states that the sum of voltage drop within closed loop is Zero.Step 2 calculationsLet apply the Kirchhoff's voltage law for given loop,150-2 I-50-3 I=0Where,I= Current passing through the circuit100-5 I=0So,\begin{array}{l}I=\frac{100}{5} \\I=20 \mathrm{~A}\end{array}Current passing through the loop is 20 \mathrm{~A}Now, let apply Kirchhoff's voltage law from point Q to P,\begin{array}{l}V_{Q}+150-2 I=V_{p} \\V_{Q}+150-2(20)=100 \\V_{Q}=100-110 \\V_{Q}=-10 \text { volt }\end{array} Step 3 AanswerThe voltage at point Q is -10 volt.  ...
