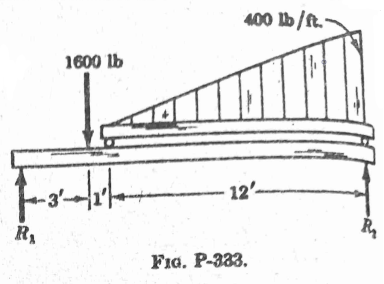

Question 400 lb /ft. - 1600 lb 12 R Fia. P-333. 333. Determine the reactions R1 and R, of the beam in Fig. P-333 loaded with a concentrated load of 1600 ib and a load varying from zero to an intensity of 400 lb per ft.
Y3WSG6 The Asker · Civil Engineering

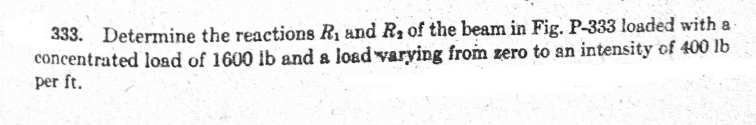

Transcribed Image Text: 400 lb /ft. - 1600 lb 12 R Fia. P-333. 333. Determine the reactions R1 and R, of the beam in Fig. P-333 loaded with a concentrated load of 1600 ib and a load varying from zero to an intensity of 400 lb per ft.
More Transcribed Image Text: 400 lb /ft. - 1600 lb 12 R Fia. P-333. 333. Determine the reactions R1 and R, of the beam in Fig. P-333 loaded with a concentrated load of 1600 ib and a load varying from zero to an intensity of 400 lb per ft.
Community Answer
Honor CodeSolved 1 Answer
See More Answers for FREE
Enhance your learning with StudyX
Receive support from our dedicated community users and experts
See up to 20 answers per week for free
Experience reliable customer service
Get Started
Step 1Determine readioly\begin{array}{l}R_{1}=\text { ? } \\R_{2}=\text { ? }\end{array}\begin{array}{l}R_{1}+R_{2}=1600+\frac{1}{2}(12)(400) \\R_{1}+R_{2}=4000 \mathrm{lb} .\end{array}Step 2Thing Moments about point B ":-\begin{aligned}\sum H_{B}=0 \Rightarrow R_{1}(16) & =(1600)(13)+\frac{1}{2}(400)(12) \frac{1}{3}(12) . \\R_{1} & =1900 \mathrm{lb} . \\R_{2} & =4000+1900 . \\R_{2} & =2100 \mathrm{lb} .\end{aligned} ...
