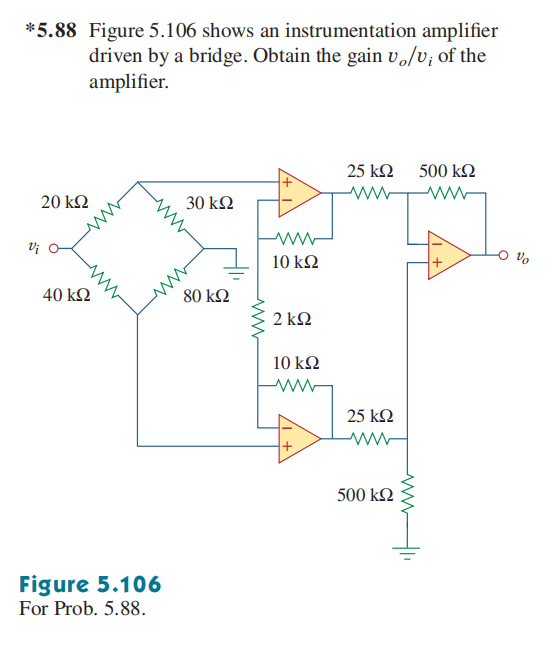

*5.88 Figure \( 5.106 \) shows an instrumentation amplifier driven by a bridge. Obtain the gain \( v_{o} / v_{i} \) of the amplifier.

Figure \( 5.106 \)

For Prob. 5.88.

Figure \( 5.106 \)

For Prob. 5.88.

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

We need to find V_{T h} at terminals a-b, from this,\begin{array}{c}\mathrm{v}_{\mathrm{o}}=\left(\mathrm{R}_{2} / \mathrm{R}_{1}\right)\left(1+2\left(\mathrm{R}_{3} / \mathrm{R}_{4}\right)\right) \mathrm{V}_{\mathrm{Th}}=(500 / 25)(1+2(10 / 2)) \mathrm{V}_{\mathrm{Th}} \\=220 \mathrm{~V}_{\mathrm{Th}}\end{array}Now we use Fig. (b) to find \mathrm{V}_{\mathrm{Th}} in terms of \mathrm{v}_{\mathrm{i}}.(a)(b)\begin{array}{c}\mathrm{v}_{\mathrm{a}}=(3 / 5) \mathrm{v}_{\mathrm{i}}, \mathrm{v}_{\mathrm{b}}=(2 / 3) \mathrm{v}_{\mathrm{i}} \\\mathrm{V}_{\mathrm{Th}}=\mathrm{v}_{\mathrm{b}}-\mathrm{v}_{\mathrm{a}}(1 / 15) \mathrm{v}_{\mathrm{i}} \\\left(\mathrm{v}_{\mathrm{o}} / \mathrm{v}_{\mathrm{i}}\right)=\mathrm{A}_{\mathrm{v}}=-220 / 15=\mathbf{- 1 4 . 6 6 7}\end{array} ...
