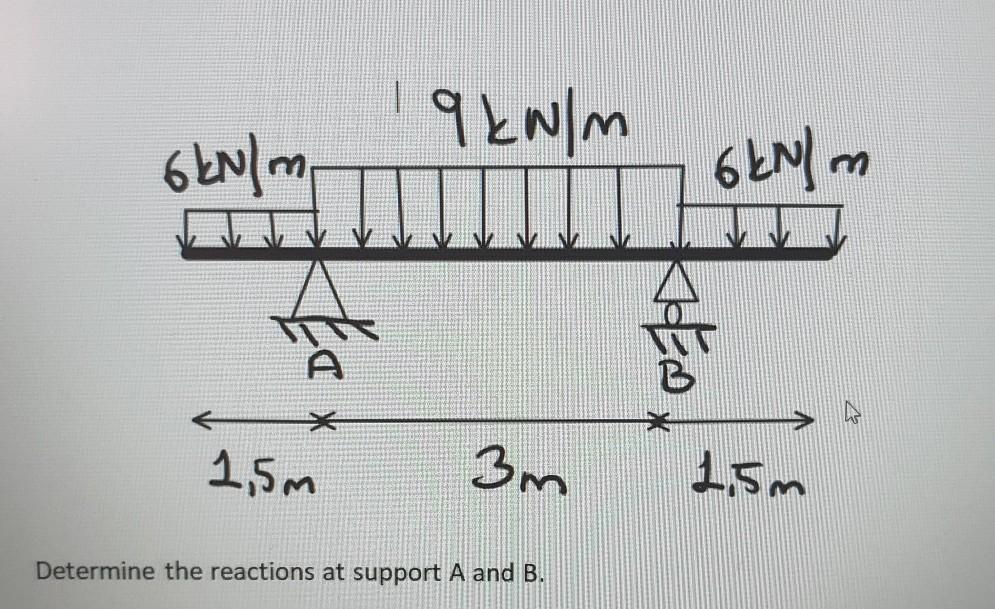

Question 9 kN/m 6kN/m 6kN/m 1,5m 3m 1.5m Determine the reactions at support A and B.
Solved 1 Answer
See More Answers for FREE
Enhance your learning with StudyX
Receive support from our dedicated community users and experts
See up to 20 answers per week for free
Experience reliable customer service
solution: \rightarrowTo find supporf reaction: \rightarrow\rightarrow The given beam is of simplysupported overhang type beam\rightarrow given beam is determinate beam\rightarrow Hence we can use equilibrium conditions only\rightarrow As the loading is vertical,\text { Henie } \begin{array}{c}\sum f_{y}=0 \\\sum M_{O A}=0\end{array}\Rightarrow \sum \sum_{y}=0 \Rightarrow algebric sum of all vertical forces is zero.\begin{array}{l}\Rightarrow \quad F_{y}=0(+\downarrow) \\\Rightarrow \quad R_{A}+R_{B}-(6 \times 1.5)-(9 \times 3)-(6 \times 1.5)=0 \\\Rightarrow \quad R_{A}+R_{B}-9-27-9=0 \\\Rightarrow \quad R_{A}+R_{B}-45=0 \\\Rightarrow \quad R_{A}+R_{B}=45\end{array}\Rightarrow take summation of moment about point A is equal to zero\Rightarrow \sum M M_{A}=0,((t, S) \text { as clockwise moment = positive }anticlockwise moment negativeScanned withCamscanner\begin{aligned}& \text { EMAA }=0 \\\Rightarrow \quad & -(6 \times 1.5) \times\left(\frac{1.5}{2}\right)+(9 \times 3) \times(1.5)-R_{B} \times 3+(6 \times 1.5) \times 3.75=0 \\\Rightarrow \quad & -(9 \times 0.75)+(27 \times 1.5)-R_{B} \times 3+9 \times 3.75=0 \\\Rightarrow \quad & -6.75+40.5-R_{B} \times 3+33.75=0 \\\Rightarrow \quad & -R_{B} \times 3+67.5=0 \\\Rightarrow \quad & R_{B \times 3}=67.5 \\\Rightarrow \quad & R_{B}=\frac{67.5}{3}\end{aligned}\Rightarrow \quad R_{B}=22.5 \mathrm{kN} (4) As Answer is positive, so our Assummed direction of force is correct.put R_{B}=2.2 .5 \mathrm{kN} in egh (1)\begin{array}{l}R_{A}+f_{B}=45 \\R_{A}+22.5=45 \\R_{A}=45-22.5 \\R_{A}=22.5 \mathrm{kN} \\R A=22.5 \mathrm{kN}(\$)\end{array}SummaryReaction at A=R_{A}=22.5 \mathrm{kN}Reaction At B=R_{B}=22.5 k_{N}Note: \rightarrow Both reactions at A \& & are same due to IS scanned symmetic loading on beamsummary : reaction at A =Ra=22.5 kn                    Reaction at B= Rb=22.5 kn Note : Both reaction at support are equal due to symmetrical loading acting on beam span.  ...
