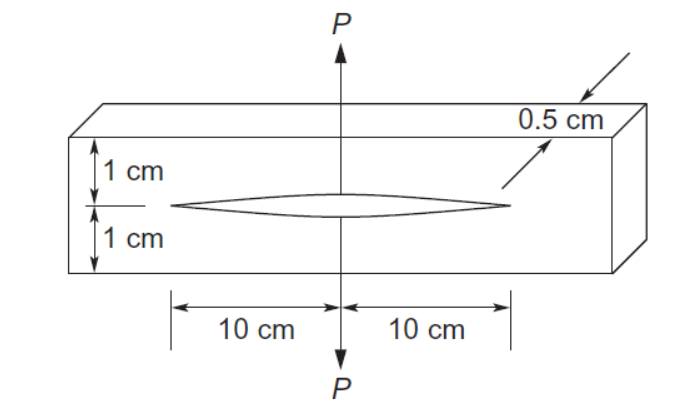

A cracked beam is subjected to a pair of forces at the center of the crack (see Figure).

a) Find the energy release release G.

b) Find the minimum P that can split the beam. Assume E =
70 GPa and G_{c} = 200 N.m/m^{2}.

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

strain energyrelease rate.G=\pi \times \sigma^{2} \times \frac{a}{E}a \doteq kalf crank leugth=10 \mathrm{~cm}=0.1 \mathrm{~m}\begin{array}{l}E=70 \times 10^{9} \mathrm{~N} / \mathrm{m}^{2} \\G=200 \\\sigma=\sqrt{4.456 \times 10^{13}} \Rightarrow 6675581.178 \mathrm{~N} / \mathrm{m}^{2}\end{array}To find the load P\begin{array}{l}\sigma=\frac{P}{A} \\P=6675581.178 \times\left(0.2 \times 0.5 \times 10^{-2}\right) \\P=6675.58 \mathrm{~N} \\P=6.675 \mathrm{kN}\end{array} Solution(a)Draw Free Body DiagramFind roment of Inertia for specified dimensiousI=\frac{t h^{3}}{12}here t=0.5 \mathrm{~cm}=0.005 \mathrm{~m}\begin{array}{l}\quad h=1 \mathrm{~cm}=0.01 \mathrm{~m} \\I=\frac{0.005(0.01)^{3}}{12}\end{array}I=4.166666667 \times 10^{-10} \mathrm{~m}^{4}Let beam (1) is a cantilevar beam with tip load P / 2Slope at tip \left(Q_{P}\right)=(P / 2) \frac{a^{2}}{2 E I}SLope due to tip moment (\theta \mathrm{m})\begin{array}{c}\theta_{m}=-\frac{m a}{E I} \\\theta p+\theta_{m}=0 \\\frac{\left(\frac{p}{2}\right) a^{2}}{2 E I}-\frac{m a}{E I}=0 \\m=\frac{p}{4} a\end{array}The moment distribution along LengthM(x)=\frac{p}{2} x-\frac{p}{4} aStram energies\begin{array}{l}v_{1}=v_{2}=\int_{0}^{a} \frac{M\left(x^{2}\right) d x}{2 E I} \\v_{1}=U_{2}=\frac{1}{2 E I} \int_{0}^{a}\left[\frac{p x}{2}-\frac{p a}{u}\right]^{2} d x \\=\frac{1}{2 E I} \int_{0}^{a}\left[\frac{p^{2} x^{2}}{4}+\frac{p^{2} a^{2}}{16}-\frac{p^{2}}{\frac{x a}{4}}\right] d x \\\end{array}Integrate above equation\begin{array}{l}U_{1}=U_{2}=\frac{1}{2} E I\left[\frac{p^{2} x^{3}}{12}+\frac{p^{2} a^{2} x}{16}-\frac{p^{2} x^{2} a}{8}\right]_{0}^{a} \\U_{1}=v_{2}=\frac{1}{2} E I\left[\frac{p^{2} a^{3}}{12}+\frac{p^{2} a^{3}}{16}-\frac{p^{2} q^{3}}{8}\right]\end{array}\begin{array}{l}U_{1}=U_{2}=\frac{1}{2 E I}\left[\frac{8 p^{2} a^{3}+6 p^{2} a^{3}-8 p^{2} a^{3}}{96}\right] \\U_{1}=U_{2}=\frac{1}{2 E I}\left[\frac{2 p^{2} a^{3}}{96}\right] \\U_{1}=U_{2}=\frac{p^{2} a^{3}}{96 E I}\end{array}Total Strain energles (V)=v_{1}+v_{2}+v_{3}\begin{array}{l}U=\frac{p^{2} a^{3}}{96 E I}+\frac{p^{2} a^{3}}{96 E I}+0 \\U=\frac{p^{2} a^{3}}{48 E I} \rightarrow \begin{array}{l}\text { Total } \\\text { Struin } \\\text { energy }\end{array}\end{array}Strain energy recease rate\begin{array}{l}G=\frac{1}{t} \frac{d u}{d a}=\frac{1}{t} \frac{d}{d a}\left[\frac{p^{2} a^{3}}{48 E I}\right] \\G=\frac{1}{t} \frac{p^{2}\left(3 a^{2}\right)}{48 E I} \\G=\frac{p^{2} a^{2}}{16 E I t} \rightarrow \rightarrow \begin{array}{c}\text { Strain ehergy } \\\text { release rate }\end{array}\end{array}Crack will propagate if G \geq G G\begin{aligned}G=G_{c} & =\frac{P_{\min }^{2} a^{2}}{16 E I t} \\P_{\min } & =\sqrt{\frac{16 E I t G_{c}}{a^{2}}} \\\text { Here } E & =70 \times 10^{9} \mathrm{~N} / \mathrm{m}^{2} \\G_{c} & =200 \mathrm{~N} \cdot \mathrm{m} / \mathrm{m}^{2}\end{aligned}\begin{array}{l}t=0.5 \mathrm{~cm}=0.005 \mathrm{~m} \\ I=4.16666667 \times 10^{-10} \mathrm{~m}^{4} \\ a=10 \mathrm{~cm}=0.1 \mathrm{~m} \\ P_{\text {min }}=\sqrt{\frac{16 \times 70 \times 10^{9} \times 4.167 \times 10^{-10} \times 0.005 \times 200}{(0.1)^{2}}} \\ P_{\text {min }}=\sqrt[46666.66666]{P_{\text {min }}=216.02 \mathrm{~N}} \\ P_{\text {min }} \approx 216 \mathrm{~N} \rightarrow \text { Result }\end{array} ...
