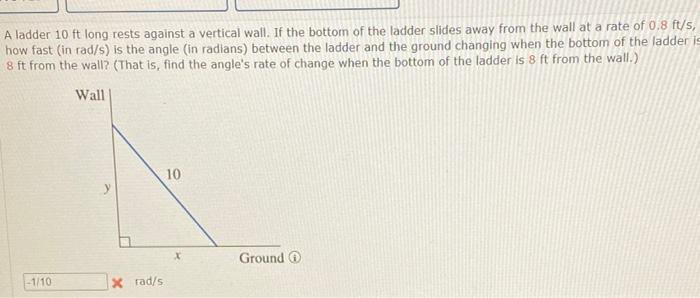

Question A ladder 10 ft long rests against a vertical wall. If the bottom of the ladder slides away from the wall at a rate of 0.8 ft/s, how fast (in rad/s) is the angle (in radians) between the ladder and the ground changing when the bottom of the ladder is 8 ft from the wall? (That is, find the angle's rate of change when the bottom of the ladder is 8 ft from the wall.) Wall 10 Ground - 1/10 Xrad/s

6. Evaluate the line integral where C is the triangle with vertices (0,0), (1,0) and (1,2) oriented as shown below, by using the definition of line integral (Do not use Green's theorem.)

Problems 3.2(e,f), 3.4(e,f), 3.5(b,c), 3.6(c,d), 3.10(a,b), 3.11, 3.12(b), 3.15(a,c) 140 Chapter 3 Gate-Level Minimization Problems 141 3.4 Simplify the following Boolean functions, using K-maps: (a) F(x,y, z) (2,3.6,7) (c)' F(A,B,C,D)=Σ(3,7, ll, 13, 14, 15) (e) F (w, x, y, z) = Σ(11, 12, 13, 14, 15) (g) F(w, x, y, z)=E(0.1.4,5,10,1 1,14,15) Simplify the following Boolean functions, using four-variable K-maps: (a)" F (w, x, y, z) = Σ(1, 4, 5, 6, 12, 14, 15) (b)" F (A, B, C, D) = Σ(2, 3, 6, 7, 12, 13, 14) (c) F (w, x, y, z) = Σ(1, 3, 4, 5, 6, 7, 9, 1 1, 13, 15) (d)' F (A, B, C, D) = Σ (0, 2, 4, 5, 6, 7, 8, 10, 13, i5) Simplify the following Boolean expressions, using four-variable K-maps: (a) A'B'C'D AC'D' B'CDA'BCD BCD (by (d)' (f) (h) F (A, B, C, D) = Σ(4. 6, 7, 15) F(w.rry, z)_E(2.3. I2. 13, 14, 15) F (w, x, y, z)-S(8, 10, 12, 13.4) F(w, x, y, z)-E(2.3.6.7.8.9.12,I3) UDP 02467 3.5 FIGURE 3.40 Schematic for Circuit with UDP_02467 3.6 Although Verilog HDL uses this kind of description for UDPs only, other HDLs and computer-aided design (CAD) systems use other procedures to specify digital circuits in tabular form. The tables can be processed by CAD software to derive an efficient gate structurc of the design. None of Verilog's predefined primitives describes sequential logic. The model of a sequential UDP requires that its output be declared as a reg data type, and that a column be added to the truth table to describe the next state. So the columns are organized as inputs: state: next state. (c) A'B'CD AB'D +A'BC ABCD AB'C (d) A'B'C'D' BC'D A'C'D A'BCD +ACD' Simplify the following Boolean expressions, using four-variable K-maps: 3.7 In this section, we introduced the HDLs and presented simple examples to illustrate alternatives for modeling combinational logic. A more detailed presentation of model- ing with HDLs can be found in the next chapter. The reader familiar with combinational circuits can go directly to Section 4.12 to continue with this subject. (c) AB C B'C'DBCD ACD'+ A'B'C+ A BC D Find the minterms of the following Boolean expressions by first plotting each function in a K-map: 3.8 (a) xy yz + xy'z (b) C'D+ABC ABD' +A'B'D (d) A'B A'CD B'CD BC'D VHDL-Truth Tables 3.9 Find all the prime implicants for the following Boolean functions, and determine which are essential: (a)" F(w, x, y, z) = Σ(0, 2, 4, 5, 6, 7, 8, 10, 13, 15) (b), F (A, B, C, D) = Σ(0, 2, 3, 5, 7, 8, 10, 11, 14, 15) (c) F (A, B, C, D) = Σ(2, 3, 4, 5, 6, 7, 9, 11, 12, 13) (d) F(w,x, y, z)=E(1.3, 6, 7, 8, 9, 12, 13, 14, 15) (e) F (A, B, C, D) = Σ(0, 1, 2, 5, 7, 8, 9, 10, 13, 15) (f) F(w, x, y, z)=E(0.1, 2, 5, 7, 8, 10, 15) Simplify the following Boolean functions by first finding the essential prime implicants: (a) F (w, x, y, z) 2(0, 2, 5, 7, 8, 10, 12, 13, 14, 15) (b) F(A, B,C, D) 2(0,2,3,5,7,8,10, 11, 14, 15) (e)* F(A, B,C,D)-(1,3,4,5, 10, 11, 12, 13, 14, 15) (d) F (w, x, y, z) = Σ(0, 1, 4, 5, 6, 7, 9, 11, 14, 15) (e) F (A, B, C, D)-Σ(0.1, 3, 7, 8, 9, 10, 13, 15) (f) F (w, x, y, z) = Σ(0, 1, 2, 4, 5, 6, 7, 10, 15) VHDL does not support truth tables directly. Instead, a truth table has to be converted into a set of Boolean equations, which can be described by signal assignment statements. PROBLEMS (Answers to problems marked with appear at the end of the text.) 3.10 1 Simplify the following Boolean functions, using three-variable K-maps: (a) F(x, y, z) = Σ (0, 2, 4, 5) (c) Fr, y, )-20,1,2,3, 5) (b) F(x,y, z)-2(0, 2, 4, 5, 6) (d) , y, z)=E(1,2,3,7) 2 Simplify the following Boolean functions, using three-variable K-maps: (b)" F(x, y, z) = Σ(1, 2, 3, 6, 7) (d) F(x, y, z) = Σ( 1, 2, 3, 5, 6, 7) (f) F(x, y, z)=E(3, 4, 5, 6, 7) (a)" F(x, y, z) = Σ (0, 1, 5, 7) (c) Fx,y, z) (2,3,4,5) (e) P(x, y, z) = Σ(0,2,4,6) Simplify the following Boolean expressions, using three-variable K-maps: (a)'. F (x.yz) = xy + x'y'z, + χ,yz (c)" F (x, y, z) = x,y + yz' + y,z' 3.11 Using K-maps for Fand F,convert the following Boolean function from a sum-of-prod- 3.3 ucts form to a simplified product-of-sums form. (d) F(x, y, z) = x,yz + xy,z' + xy'z F(w ryz)0,,2, 5,8, 10, 13)

Please help solving problem 1,2 and 3. Thank you very much. For questions 1 - 3, consider the following test results obtained for a surface water sample. lon Concentration (ppm) Ca2+ 36.0 Mg2+ 10.8 Na 12.4 K 5.9 нсоз" 82.1 SO42 32.0 CI 16.9 NO3 7.4 1. Check the accuracy of the analytical measurements. Do you suspect that a constituent of significance has been neglected? If so, is it a cation or an anion? 2. Determine the mole fraction of calcium, magnesium, and sulfate for the water sample given above. 3. Determine this water's hardness and alkalinity in mg/L as CaCO3.

Die-rolling experiment: 1) Acquire any "fair-enough" die. 2) Roll it at least 100 times (each person for themselves). 3) Note what the outcome is overy time. 4) For each group of 5 (go consecutively, i.e. group first five rolls, then the next five rolls, etc.), take the average of the 5 rolls. For example, if the first five rolls are \( 3,6,1 \), 5 , and 3 , Die-rolling experiment: 1) Acquire any "fair-enough" die. 2) Roll it at least 100 times (each person for themselves). 3) Note what the outcome is overy time. 4) For each group of 5 (go consecutively, i.e. group first five rolls, then the next five rolls, etc.), take the average of the 5 rolls. For example, if the first five rolls are \( 3,6,1 \), 5 , and 3 , the average will be \( 18 / 5=3.6 \). 5) You will end up with at least 20 averages. Plot these averages on a \( 2 \mathrm{D} \) column graph. Alternatively, you can do a histogram of your results, which will be a fancier way of doing a 2D column graph. With a histogram though, you can control the bin size and instead of each individual average (e.g. 3.2, 3.4. 3.6, etc.). you can group them together with a bin size of 1 . Bonus credits will be assigned to those showing their results with a histogram of bin size 1 in addition to their regular \( 2 \mathrm{D} \) column graphs. 6) All the probabilities of \( 1,2,3,4,5 \) and 6 are \( 1 / 6 \) with a fair die. Therefore, the probabilities are said to be "uniformly distributed". Then, why is your \( 2 D \) column graph / histogram not looking uniform at all? Speculate / comment on the rationale for this.

2-4 Estimate the TDS for one of the water samples in Problem \( 2-1 \) or \( 2-2 \) (to be selected by instructor) using Eq. (2-11) and by summing the mass of the individual ionic species. How do the computed values compare?The following test results were obtained for three treated wastewater effluent samples. Check the accuracy of the analytical 2-4 Estimate the TDS for one of the water samples in Problem \( 2-1 \) or \( 2-2 \) (to be selected by instructor) using Eq. (2-11) and by summing the mass of the individual ionic species. How do the computed values compare?The following test results were obtained for three treated wastewater effluent samples. Check the accuracy of the analytical measurements for one of the waters (to be selected by instructor). Do you suspect that a constituent of significance has been neglected? If so, is it a cation or anion? Determine the mole fraction of \( \mathrm{Ca}^{2+}, \mathrm{Mg}^{2+} \), and \( \mathrm{SO}_{4}^{2-} \) for one of the following treated wastewater effluents (to be selected by instructor).

Which of the following statements is correct regarding Kepler's three laws of planetary motion? Angular momentum of any planet about an axis through the Sun and perpendicular to the orbital plane is not invariant during its motion. Planets move in elliptical orbits with the sun not being at its center. Orbital period of a planet is directly proportional to Which of the following statements is correct regarding Kepler's three laws of planetary motion? Angular momentum of any planet about an axis through the Sun and perpendicular to the orbital plane is not invariant during its motion. Planets move in elliptical orbits with the sun not being at its center. Orbital period of a planet is directly proportional to its distance from the sun. Kepler's laws are valid only for planets in the solar system.
