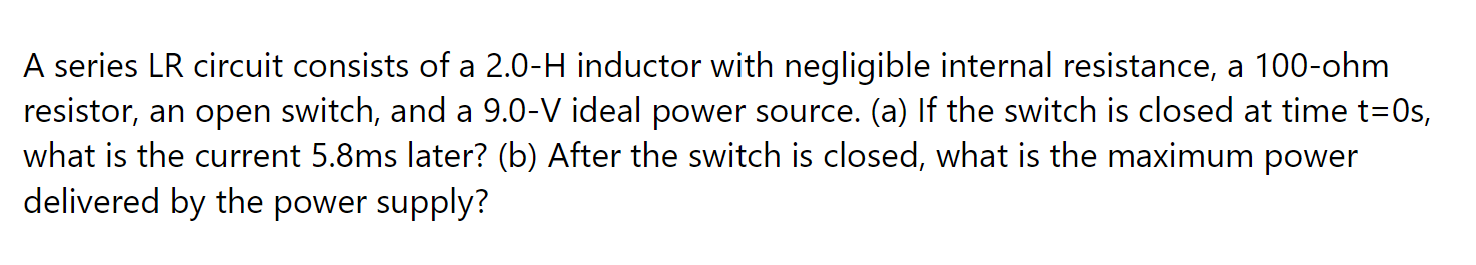

Please write legibly and show all work. Thank you.

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

SalutionGiven\begin{array}{l}L=2 H, R=100 \Omega \\V=9 V\end{array}a) At t=0, the switch S is closedand the circuit is completed.From kirchoft"s Voltage rull,\begin{aligned}V_{L}+V_{R} & =V \\L \frac{d i}{d t} & +i R=V \\L \frac{d i}{d t}=V-i R \Rightarrow & \int_{0}^{i} \frac{d i}{V-i R}=\int_{0}^{t} \frac{d t}{L}\end{aligned}-) on integrating weget\begin{array}{l} i(t)=i_{0}\left(1-e^{-t / \tau}\right), \text { where } i_{0}=\frac{V}{R} \\\tau=L / R \\\Rightarrow i(t=5.8 \mathrm{~ms})=\frac{9}{100}\left[1-e^{-\frac{5.8 \times 10^{-3}}{\alpha} \times 100}\right] \\\Rightarrow i=9 \times 10^{-2}\left[1-e^{-0.29}\right], 9 \times 10^{-2}[1-0.748]\end{array}\begin{array}{c}\Rightarrow i(5.8 \mathrm{~ms})=0.02268 \mathrm{~A} \\i=22.68 \mathrm{~mA}\end{array}B) Maximum Power delivered by the Rower suthby\begin{aligned}P & =i_{\max }^{2} R=\frac{v^{2}}{R} \quad\left[\because i_{\text {max }}=\frac{v}{R}\right] \\\Rightarrow P=\frac{(q)^{2}}{100} & =0.81 \text { Watt }\end{aligned}please upvote ud83dudc4d Comment for any doubt ...
