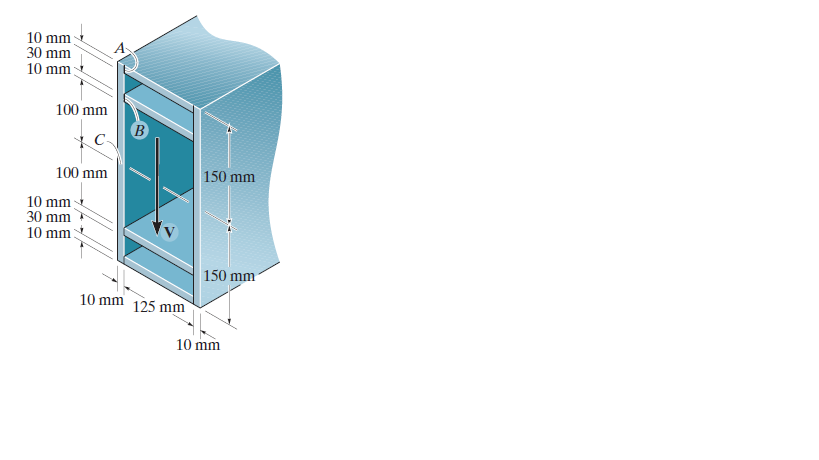

A shear force of V = 18 kN is applied to the box girder. Determine the shear flow at points A and B.

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

Step 1Section properties for given box are\begin{array}{l}I_{N \cdot A}=\left\{\begin{array}{l}\frac{(0.145)(0.3)^{3}}{12} \mathrm{~m}^{4}-\frac{(0.125)(0.28)^{3}}{12} \mathrm{~m}^{4} \\ +2\left[\frac{(0.125)(0.01)^{3}}{12}+0.125(0.01)(0.105)^{2}\right] \mathrm{m}^{4}\end{array}\right\}=125.17 \times 10^{-6} \mathrm{~m}^{4} \\ Q_{A}=\bar{y}_{2}^{\prime} A^{\prime}=0.145 \times(0.125 \times 0.01) \\ Q_{A}=0.18125 \times 10^{3} \mathrm{~m}^{3} \\ Q_{B}=\bar{y}_{1}^{\prime} A^{\prime}=0.105 \times(0.125 \times 0.01) \\ Q_{B}=0.13125 \times 10^{3} \mathrm{~m}^{3}\end{array} Step 2Shear flow at A and B can be determined as\begin{array}{l}q_{A}=\frac{1}{2}\left(\frac{V Q_{A}}{I}\right) \\ q_{A}=\frac{1}{2}\left(\frac{\left(18 \times 10^{3} \mathrm{~N}\right)\left(0.18125 \times 10^{3} \mathrm{~m}^{3}\right)}{125.17 \times 10^{-6} \mathrm{~m}^{4}}\right) \\ q_{A}=13033 \mathrm{~N} / \mathrm{m}=13.033 \mathrm{kN} / \mathrm{m} \\ q_{B}=\frac{1}{2}\left(\frac{V Q_{B}}{I}\right) \\ q_{B}=\frac{1}{2}\left(\frac{\left(18 \times 10^{3} \mathrm{~N}\right)\left(0.13125 \times 10^{3} \mathrm{~m}^{3}\right)}{125.17 \times 10^{-6} \mathrm{~m}^{4}}\right) \\ q_{B}=9437 \mathrm{~N} / \mathrm{m}=9.437 \mathrm{kN} / \mathrm{m}\end{array} ...
