# Question help asap An n-channel enhancement-mode MOSFET has the following parameters: conductance parameter, Kn = 3 mA/V2 and threshold voltage, Vr=1.5 V. The MOSFET is operating with VGS = 4V. a) Determine the value of VDS(sat) A/ b) If the MOSFET is operated in the saturation region with Vps = 14 V. determine the value of the drain current, ID A/ c) If the MOSFET is operated in the saturation region with Vps = 14 V, determine the value of the transconductance in saturation A/ d) If the MOSFET is operated in the nonsaturation region with Vps = 0.4 V, determine the value of the drain current, ID A e) If the MOSFET is operated in the nonsaturation region with Vps = 0.4 V, determine the value of transconductance in nonsaturation A

VW0PFS The Asker · Electrical Engineering
help asap

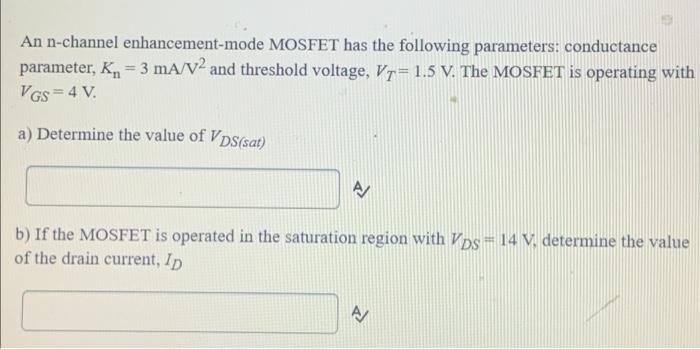

Transcribed Image Text: An n-channel enhancement-mode MOSFET has the following parameters: conductance parameter, Kn = 3 mA/V2 and threshold voltage, Vr=1.5 V. The MOSFET is operating with VGS = 4V. a) Determine the value of VDS(sat) A/ b) If the MOSFET is operated in the saturation region with Vps = 14 V. determine the value of the drain current, ID A/ c) If the MOSFET is operated in the saturation region with Vps = 14 V, determine the value of the transconductance in saturation A/ d) If the MOSFET is operated in the nonsaturation region with Vps = 0.4 V, determine the value of the drain current, ID A e) If the MOSFET is operated in the nonsaturation region with Vps = 0.4 V, determine the value of transconductance in nonsaturation A
More

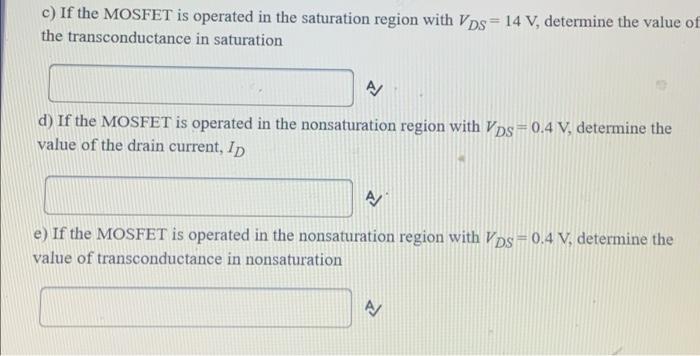

Transcribed Image Text: An n-channel enhancement-mode MOSFET has the following parameters: conductance parameter, Kn = 3 mA/V2 and threshold voltage, Vr=1.5 V. The MOSFET is operating with VGS = 4V. a) Determine the value of VDS(sat) A/ b) If the MOSFET is operated in the saturation region with Vps = 14 V. determine the value of the drain current, ID A/ c) If the MOSFET is operated in the saturation region with Vps = 14 V, determine the value of the transconductance in saturation A/ d) If the MOSFET is operated in the nonsaturation region with Vps = 0.4 V, determine the value of the drain current, ID A e) If the MOSFET is operated in the nonsaturation region with Vps = 0.4 V, determine the value of transconductance in nonsaturation A
