# Question An n-channel enhancement-mode MOSFET has the following parameters: conductance parameter, Kn = 5 mA/V2 and threshold voltage, Vr=2 V. The MOSFET is qperating with Vos = 5 V. a) Determine the value of VDS (sat) AJ b) If the MOSFET is operated in the saturation region with Vps - 12 V, determine the value of the drain current ID c) If the MOSFET is operated in the saturation region with VDs - 12 V, determine the value of the transconductance in saturation d) If the MOSFET is operated in the nonsaturation region with Vps = 0.8 V, determine the value of the drain current, ID A e) If the MOSFET is operated in the nonsaturation region with Vps = 0.8 V, determine the value of transconductance in nonsaturation

37TB9P The Asker · Electrical Engineering

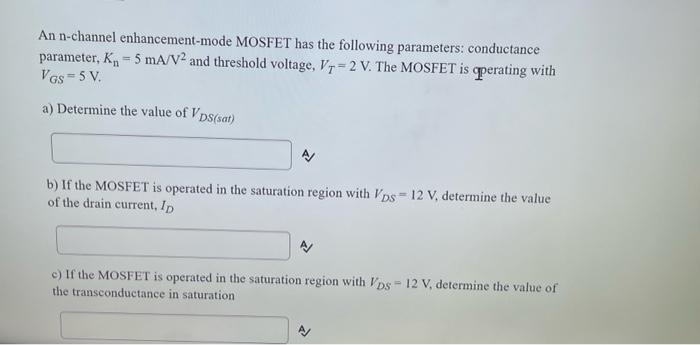

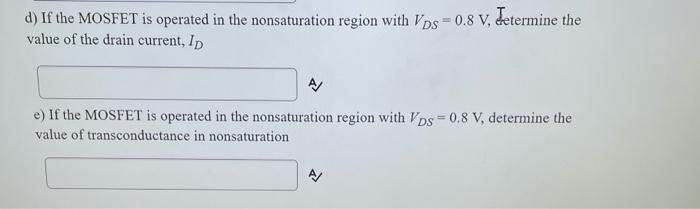

Transcribed Image Text: An n-channel enhancement-mode MOSFET has the following parameters: conductance parameter, Kn = 5 mA/V2 and threshold voltage, Vr=2 V. The MOSFET is qperating with Vos = 5 V. a) Determine the value of VDS (sat) AJ b) If the MOSFET is operated in the saturation region with Vps - 12 V, determine the value of the drain current ID c) If the MOSFET is operated in the saturation region with VDs - 12 V, determine the value of the transconductance in saturation d) If the MOSFET is operated in the nonsaturation region with Vps = 0.8 V, determine the value of the drain current, ID A e) If the MOSFET is operated in the nonsaturation region with Vps = 0.8 V, determine the value of transconductance in nonsaturation
