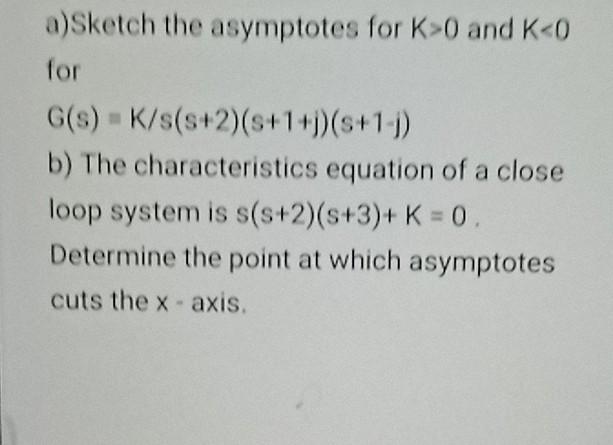

Sketch for both conditions.

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

Solution:-a) GivenG(s)=\frac{k}{s(s+2)(s+1+j)(s+1-j)}The centre of asymptotes is\begin{array}{l}\sigma_{c}=-\frac{(0+2+1+j+1-j)}{4} \\\sigma_{c}=-1\end{array}For k>0, the angles of the asymptotes are\theta=45^{\circ}, 135^{\circ}, 225^{\circ} \& 135^{\circ}For k<0, the angles of the asymptotes are\theta=0^{\circ}, 90^{\circ}, 180^{\circ} \& 270^{\circ}SketchFor K \geq 0for \quad K<0b) Cniven charectesiscs equation\begin{array}{l} s(s+2)(s+3)+k=0 \\\Rightarrow \quad 1+\frac{k}{s(s+2)(s+3)}=0 \\\text { so centroid }=\frac{(0-2-3)-0}{3-0} \\=-1.67\end{array}So the asymptotes will cut x-axis at -1.67Thanks ...
