please give explanation

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

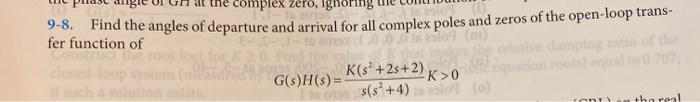

Given, G(s) H(s)=\frac{K\left(s^{2}+2 s+2\right)}{S\left(s^{2}+4\right)}= Open loop transfer function,Openloop poles are:\begin{array}{l}S\left(s^{2}+4\right)=0 \Rightarrow s=0 \text { and } s^{2}+4=0 \\\Rightarrow s^{2}=-4 \Rightarrow s= \pm \sqrt{-4} \\\therefore \text { Poles are } s=0,2 j,-2 j\end{array}Open loop zeroes:\begin{array}{ll}s^{2}+2 s+2=0 \Rightarrow s^{2}+2 s+1+1=0 \Rightarrow & (s+1)^{2}+1=0 \\& (s+1)^{2}=-1 \Rightarrow s+1= \pm \sqrt{-1} \\& s+1= \pm j \\\therefore \text { zeroes are } s=-1+j,-1-j & s=-1 \pm j\end{array}\therefore zeroes are s=-1+j,-1-jPlot of poles and zeroes:Angle of Departure: \left(\phi_{d}\right)A root locus branch starts at complex pole with an angle \phi_{d}.\left.\phi_{d}=180+\phi \quad \text { where } \phi=-\sum_{1} \text { (angle made by poles }\right)+\sum_{1} \text { angle made by } \text { zeroes }\phi=-\sum_{1} \phi_{p}+\sum_{1} \phi_{z}There are two complex poles:For s=+2 j\begin{aligned}\sum_{1} \phi_{p}=\theta_{1}+\theta_{2} & =90+90=180^{\circ} \\\sum_{1} \phi_{z}=\theta_{3}+\theta_{4} & =\tan ^{-1}\left(\frac{3}{1}\right)+\tan ^{-1}\left(\frac{1}{1}\right) \\\sum_{1} \phi_{z} & =71.565+45^{\circ} \\\sum_{1} \phi_{z} & =116.565^{\circ}\end{aligned}\begin{aligned}\phi=-\sum \phi_{p}+\sum_{1} \phi_{z} & =-180+116.525 \\\phi & =-63.435\end{aligned}\begin{array}{c}\phi_{d}=180+\phi=180-63.435 \\\phi_{d}=116.565^{\circ}\end{array}For s=-2 j\phi_{d}=-116.565^{\circ}[\because Angle of departure of a complex conjugate pole is \left.-\left(\phi_{d}\right)\right)Angle of Arrival \left(\phi_{a}\right) :A root locus ends at complex zero with an angle \phi_{a}.\phi_{a}=180-\phiThere are two complex zeroesFor s=-1+j :\begin{array}{c}\sum_{1} \phi_{p}=\theta_{1}+\theta_{2}+\theta_{3} \\\sum_{p}=\left(90+\tan ^{-1}\left(\frac{1}{3}\right)\right)+\left(90+\tan ^{-1}\left(y_{1}\right)\right. \\-\left[90+\tan ^{-1}\left(\phi_{1}\right)\right] \\\phi=-\sum_{1} \phi_{p}+\sum_{1} \phi_{z}=-g 6-\tan ^{-1}\left(\frac{1}{3}\right)+g 6 \\\phi_{a}=180-\phi_{a}=\theta_{4}=90^{\circ} \\=180-\left(-\tan ^{-1}(1 / 3)\right)=180+\tan ^{-1}(1 / 3)=180+18.435 \\\phi_{a}=198.435^{\circ}\end{array}Qa for its complex conjugate s=-1-j is -198.435^{\circ} ...
