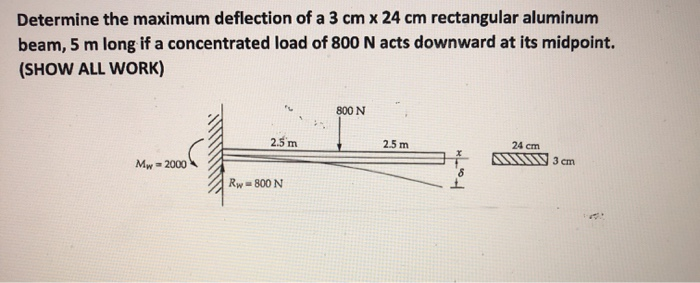

# Question Determine the maximum deflection of a 3 cm x 24 cm rectangular aluminum beam, 5 m long if a concentrated load of 800 N acts downward at its midpoint. (SHOW ALL WORK) 800 N 2.5'm 2.5 m 24 cm Mw=2000 3 cm Rw-800N

UJDHPU The Asker · Mechanical Engineering

Transcribed Image Text: Determine the maximum deflection of a 3 cm x 24 cm rectangular aluminum beam, 5 m long if a concentrated load of 800 N acts downward at its midpoint. (SHOW ALL WORK) 800 N 2.5'm 2.5 m 24 cm Mw=2000 3 cm Rw-800N
More
Transcribed Image Text: Determine the maximum deflection of a 3 cm x 24 cm rectangular aluminum beam, 5 m long if a concentrated load of 800 N acts downward at its midpoint. (SHOW ALL WORK) 800 N 2.5'm 2.5 m 24 cm Mw=2000 3 cm Rw-800N
Community Answer
WXRTD6

(Duestion:Polution:BMD (Bending moment Diagram)Maximum deflection of Cantilever Beam Subjected To Point Load is observed at the free end of Cantilever Beam.Solve By using moment-area method:bar(x)=(2)/(3)(2.5)+2.5quad bar(x)=4.16667 ... See the full answer
