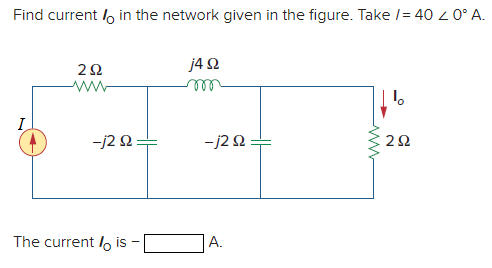

Question Find current Io in the network given in the figure. Take I = 40 ∠ 0° A. Find current lo in the network given in the figure. Take I = 40 20°A. 2Ω j4Ω m 15 1 -j2Ω. -j2Ω. 2Ω W The current lois Α.

Problem 3 - In this problem, you will be working on the node concept in a circuit as well as concepts of parallel and series combinations of resistances. A battery modeled as a voltage source in series with a resistance, is connected to a circuit as shown below. First, you need to simplify the circuit by finding the equivalent resistance, Reg "seen by the battery. Then, you will find is and calculate the power delivered by the battery Follow the steps given below to solve this problem: Battery Vs = 5[V] RS 130) RA= 1610) R = 240) Ri= 11[0] w R = 33[0] R2 = 27101 R3 = 16021 W a) Color code and label the nodes (two of them are already labeled as A and B) on the circuit shown above and verify that there are a total of 4 nodes in this circuit. For a wire connecting devices, being straight or twisted does not make any difference since we assume that the wire resistance is equal to zero. The shape of a wire does NOT matter! b) Look at your color-coded circuit. Identify all of the parallel resistors and calculate the equivalent resistance for each parallel combination. Show your calculations in the following table. There will be two sets of parallel combinations. Remember: if two resistors are in between the same nodes, then they are connected in parallel. Redraw the circuit with parallel resistors combined together. Redraw Circuit Rp1 RPZ c) The circuit you got in step (b) has two resistors in series. Identify them, and calculate the equivalent series combination (Rs). Remember: if two resistors share the same exact current, then they are connected in series. Combine the two series resistors and redraw the circuit. Redraw Circuit RSER d) Identify the two resistors in parallel in the circuit redrawn in step (C). Calculate the parallel combination which will give you the value of Reg. Combine the parallel resistors and redraw the circuit. Redraw Circuit REQ e) Now that the circuit is simplified, use KVL and Ohm's Law to find is and the voltage across the battery (which happens to be the voltage across Req). When applying Ohm's Law, pay attention to sign convention f) Calculate the power delivered by the battery. Remember that the battery is represented by Vs and Rg together. Therefore, the total power delivered by the battery will be equal to the power delivered by v, and power delivered by Rs added together. Show that power delivered by the battery is equal to the power absorbed by Reg.

GENG8020 Assignment #4 Earned Value Analysis Your project team has been tasked with assembling 100 data acquisition systems in 8 days. The estimated cost of each unit is $10,000, for a total project cost of $1,000,000 The following table provides the schedule and cost estimates determined at the start of the project: Day 1 Day 2 Day 3 Day 4 Day 5 Day 6 Day 7 Planned Day 8 10 12 15 18 15 15 10 5 number of built systems Estimated 100,000 120,000 150,000 180,000 150,000 150,000 100,000 cost for 50,000 the day (5) Estimated 100,000 220,000 370,000 550,000 700,000 850,000 950,000 cumulative 1,000,000 cost (5) What is the budgeted cost of work scheduled (BCWS)? $550,000 What is the budgeted cost of work performed (BCWP)? $500,000 What is the actual cost of work performed (ACWP)? $500,000 Calculate the schedule variance (SV). SV = 550,000 - 500,000 = $50,000 Calculate the cost variance (CV). CV = 500,000 - 500,000 = 0 Calculate the Schedule Performance Index (SPI). SPI = 550,000 / 500,000 = 1.1 Calculate the Cost Performance Index (CPI). CPI = 500,000/500,000 = 1

The number of students infected with the flu on a college campus after t days is modeled by the function 200 What is the maximum number of infected students possible The number of students infected with the flu on a college campus after days is modeled by the function P 1.19-23 OA 120 students Ostudents C 4 stores OD 240 students

Please show all work, thank you! Find the solution space of the homogeneous system of equations. X1 -3x2 + x3=0 2x1 - 6x2 +2x3=0 3x1 -9x2 + 3x3=0

Calculate the coefficient of variation for the following sample data. 10 14 13 11 12 cv=% (Round to two decimal places as needed.)

Moments and shear stress 2. The following figure shows all the stresses on a small volume element (of volume dxdydz) in equilibrium. By calculating the moments about the centre of the element and understanding that in equilibrium the total sum of moments around the x, y and z axes are zero, prove that: Txy Tyx Txz = T7x and Tyz Tzy dx буг бу dz Ох бу Оух xy Moments and shear stress 2. The following figure shows all the stresses on a small volume element (of volume dxdydz) in equilibrium. By calculating the moments about the centre of the element and understanding that in equilibrium the total sum of moments around the x, y and z axes are zero, prove that: Txy Tyx Txz = T7x and Tyz Tzy dx буг бу dz Ох бу Оух xy бх dy (Hint: calculate the moments about the centre of the element in the x, y and z axes separately.) 60
