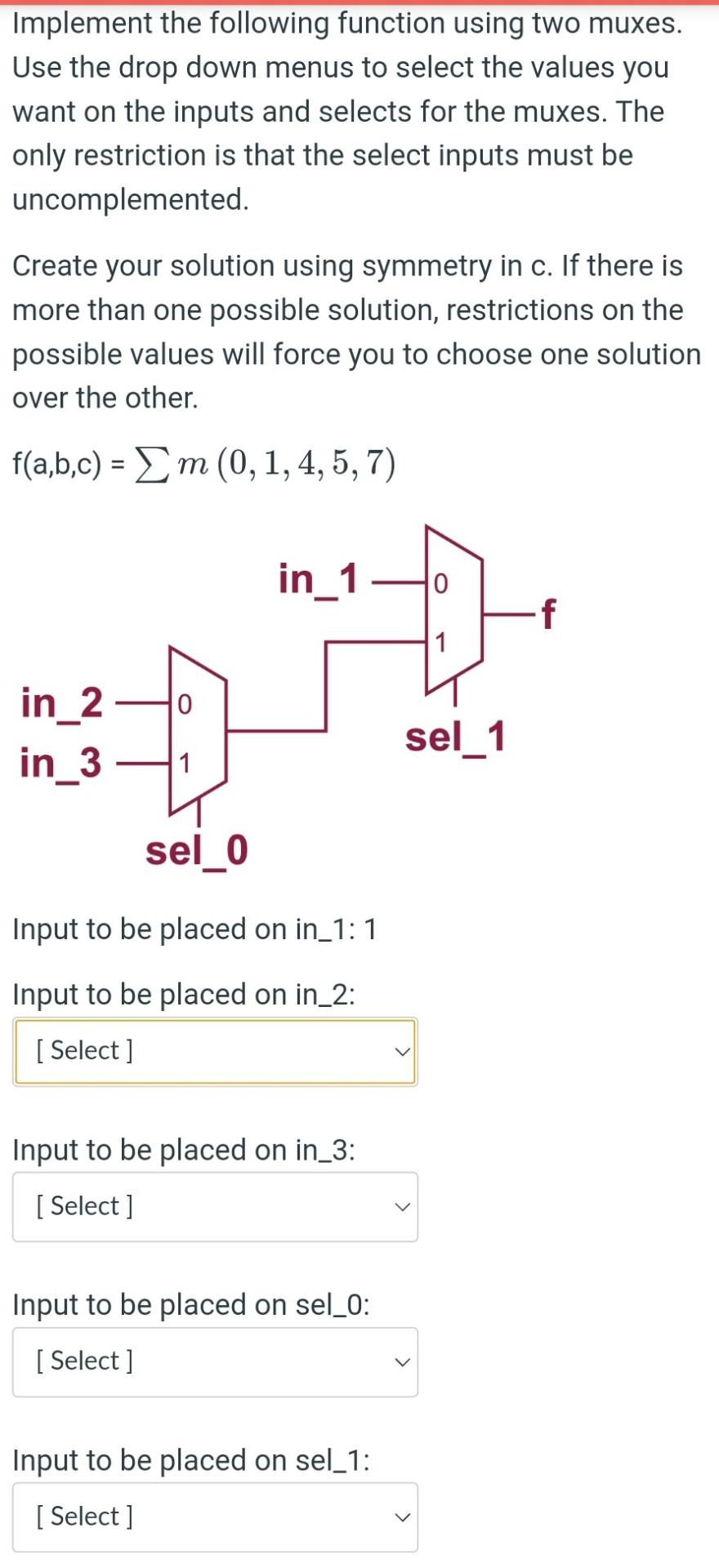

Question Implement the following function using two muxes. Use the drop down menus to select the values you want on the inputs and selects for the muxes. The only restriction is that the select inputs must be uncomplemented. Create your solution using symmetry in c. If there is more than one possible solution, restrictions on the possible values will force you to choose one solution over the other. f(a,b,c) = m (0,1,4,5,7) in_140 f 1 0 in_2 in_361 sel_1 sel_0 Input to be placed on in_1:1 Input to be placed on in_2: [ Select] Input to be placed on in_3: [ Select ] Input to be placed on sel_0: [ Select] Input to be placed on sel_1: [ Select]
J9IH01 The Asker · Computer Science
Transcribed Image Text: Implement the following function using two muxes. Use the drop down menus to select the values you want on the inputs and selects for the muxes. The only restriction is that the select inputs must be uncomplemented. Create your solution using symmetry in c. If there is more than one possible solution, restrictions on the possible values will force you to choose one solution over the other. f(a,b,c) = m (0,1,4,5,7) in_140 f 1 0 in_2 in_361 sel_1 sel_0 Input to be placed on in_1:1 Input to be placed on in_2: [ Select] Input to be placed on in_3: [ Select ] Input to be placed on sel_0: [ Select] Input to be placed on sel_1: [ Select]
More Transcribed Image Text: Implement the following function using two muxes. Use the drop down menus to select the values you want on the inputs and selects for the muxes. The only restriction is that the select inputs must be uncomplemented. Create your solution using symmetry in c. If there is more than one possible solution, restrictions on the possible values will force you to choose one solution over the other. f(a,b,c) = m (0,1,4,5,7) in_140 f 1 0 in_2 in_361 sel_1 sel_0 Input to be placed on in_1:1 Input to be placed on in_2: [ Select] Input to be placed on in_3: [ Select ] Input to be placed on sel_0: [ Select] Input to be placed on sel_1: [ Select]
Community Answer
NLSG9E
  thin may be"1" remainl{:[f(a","b","c)=epsi bar(b)(ubrace(( bar(a))( bar(c))+( b ... See the full answer
