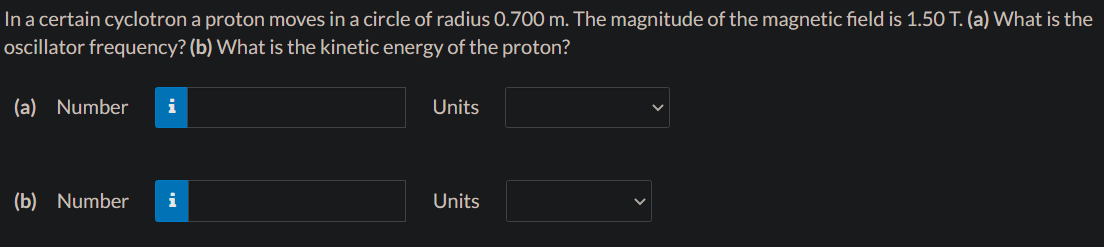

In a cyclotron, centrifugal force needed for rotation is provided by the magnetic force. Thus \frac{m v^{2}}{r}=e v B \Rightarrow \frac{v}{r}=\frac{e B}{m} \Rightarrow f=\frac{1}{T}=\frac{v}{2 \pi r}=\frac{e B}{2 \pi m} (a) Now for a proton m=1.6726 \times 10^{-27} \mathrm{~kg} e=1.6 \times 10^{-19} Here B=1.5 \mathrm{~T}. Thus frequency of oscillation is f=\frac{e B}{2 \pi m}=\frac{1.6 \times 10^{-19} \times 1.5}{2 \pi \times 1.6726 \times 10^{-27}} \mathrm{~Hz}=2.284 \times 10^{7} \mathrm{~Hz} (b) We know that \frac{m v^{2}}{r}=e v B \Rightarrow p=m v=e B r \therefore K E=\frac{p^{2}}{2 m}=\frac{e^{2} B^{2} r^{2}}{2 m} Here r=0.7 \mathrm{~m}. Thus kinetic energy is K E=\frac{e^{2} B^{2} r^{2}}{2 m}=\frac{\left(1.6 \times 10^{-19}\right)^{2} \times 1.5^{2} \times 0.7^{2}}{2 \times 1.6726 \times 10^{-27}} \mathrm{~J}=8.437 \times 10^{-12} \mathrm{~J}   ...
