# Question K (s+6) The unity feedback system shown in Problem 1 with G(s) = is operating with a (s+2)(s+3)(s+5) dominant-pole damping ratio of 0.707. The dominant poles are located at -2.32 t j2.32 b. Design a PD controller so that the settling time is reduced by a factor of 2. Compare the transient and steady-state performance of the uncompensated and compensated K (s+6) The unity feedback system shown in Problem 1 with G(s) = is operating with a (s+2)(s+3)(s+5) dominant-pole damping ratio of 0.707. The dominant poles are located at -2.32 t j2.32 b. Design a PD controller so that the settling time is reduced by a factor of 2. Compare the transient and steady-state performance of the uncompensated and compensated systems Specifically, compare the settling time, peak time, percent overshoot and on and identify whether there is steady state error in the compensated system. Describe any problems with your design

SEM2XR The Asker · Electrical Engineering

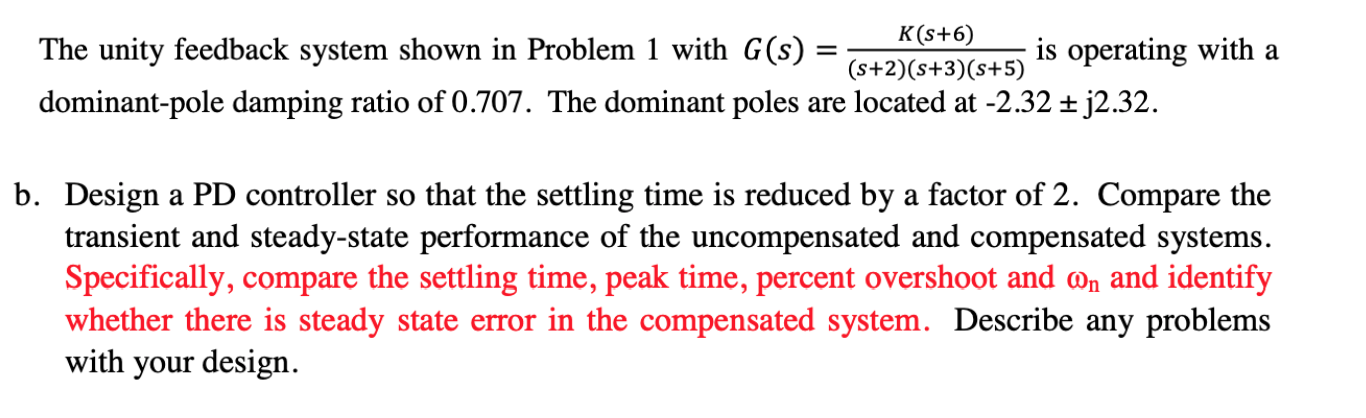

Transcribed Image Text: K (s+6) The unity feedback system shown in Problem 1 with G(s) = is operating with a (s+2)(s+3)(s+5) dominant-pole damping ratio of 0.707. The dominant poles are located at -2.32 t j2.32 b. Design a PD controller so that the settling time is reduced by a factor of 2. Compare the transient and steady-state performance of the uncompensated and compensated systems Specifically, compare the settling time, peak time, percent overshoot and on and identify whether there is steady state error in the compensated system. Describe any problems with your design
More
Transcribed Image Text: K (s+6) The unity feedback system shown in Problem 1 with G(s) = is operating with a (s+2)(s+3)(s+5) dominant-pole damping ratio of 0.707. The dominant poles are located at -2.32 t j2.32 b. Design a PD controller so that the settling time is reduced by a factor of 2. Compare the transient and steady-state performance of the uncompensated and compensated systems Specifically, compare the settling time, peak time, percent overshoot and on and identify whether there is steady state error in the compensated system. Describe any problems with your design
