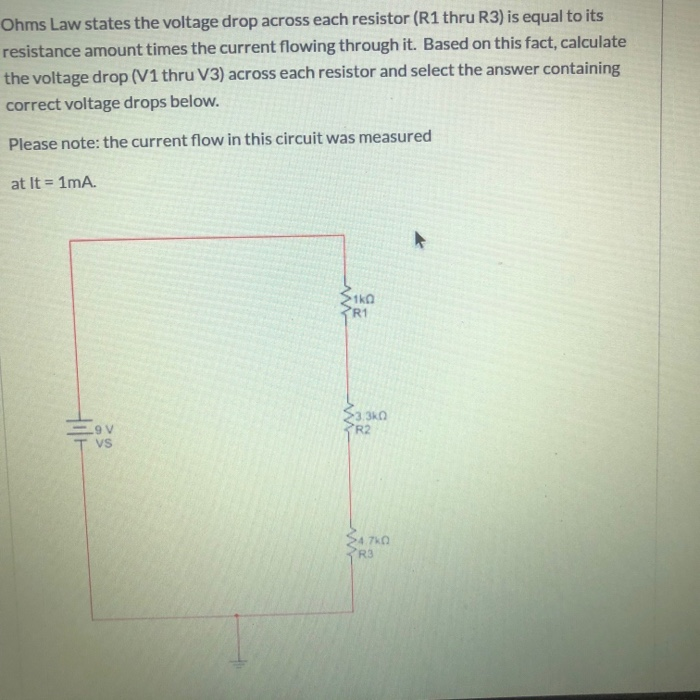

Since the resistors are in series, Same current will flow through each of the resistors. THERFORE, Voltage Drop Accross, V1= It*R1= 1mA*1K = 1V V2= It*R2= 1mA*3.3K = 3.3V V3= It*R3= 1mA*4.7K = 4.7V We can also prove that the total voltage dropped accross the resistors equals to the supply voltage. i.e Vs= V1+V2+V3 9= 1+3.3+4.7 LHS=RHS ...
