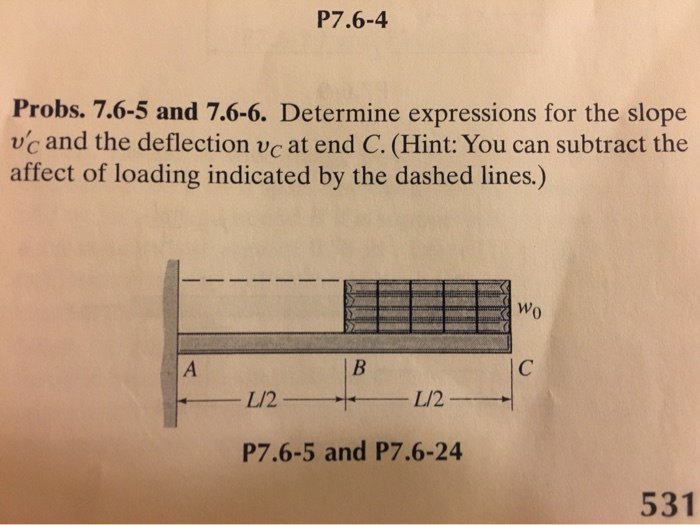

7.6-5

Community Answer

Honor CodeSolved 2 Answers

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

Solution: - step(1) \rightarrow Reactions at supportf B D \rightarrow\begin{array}{r}\sum f_{y}=0 \rightarrow V_{A}=\frac{\omega_{0} L}{2} \\\Sigma M=0 \rightarrow M_{A}=\frac{\omega_{0} L}{2} \times \frac{3 L}{4} \\M_{A}=\frac{3 \omega_{0} L^{2}}{8}\end{array}Step (II) \rightarrow Moment equation at distance x from pt.AM(x)=\frac{\omega_{0} L}{2} x-\frac{3 \omega_{0} L^{2}}{8}\langle x\rangle^{0}-\frac{\omega_{0}}{2}\left\langle x-\frac{L}{2}\right\rangle^{2}Using double entegration methodE I \frac{d^{2} y}{d x^{2}}=M(x)\begin{array}{l}E I \frac{d^{2} y}{d x^{2}}=\frac{\omega_{0} L}{2} x-\frac{3 \omega_{0} L^{2}}{8}\langle x\rangle^{0}+\frac{\omega_{0}}{2}\left\langle x-\frac{L}{2}\right\rangle^{2} \\\text { EI } \frac{d y}{d x}=\frac{\omega_{0} L x^{2}}{4}-\frac{3 \omega_{0} L^{2}}{d}(x)-\frac{\omega_{0}}{6}\left\langle x-\frac{L}{2}\right\rangle^{3}+c_{1} \\E I y=\frac{\omega_{0} L x^{3}}{12}-\frac{3 \omega_{0} L^{2} x^{2}}{16}-\frac{\omega_{0}}{24}\left\langle x-\frac{L}{2}\right\rangle^{4}+G x+c_{2}-\end{array}Boundry condition \rightarrow\frac{d y}{d x}=\theta=0 and y=A=0 at x=0in equation (1) &(11) \rightarrow\begin{array}{l}c_{1}=0 \\c_{2}=0\end{array}Now slope at c \rightarrow V_{c}^{\prime} \rightarrow x=L in eq(1)\begin{array}{c}E I \frac{d y}{d x}=E I \theta_{c}=\frac{\omega_{0} L L^{2}}{4}-\frac{3 \omega_{0} L^{2} \times L}{8}-\frac{\omega_{0}}{6}\left(L-\frac{L}{2}\right)^{3} \\\Rightarrow E I V_{c}^{\prime}=-\frac{7}{48} \omega_{0} L^{3} \\\Rightarrow V_{c}{ }^{\prime}=-\frac{7 \omega_{0} L^{3}}{48 E I}\end{array}Ansdiflection atc V_{c} \rightarrow x=L in eq (11) -\begin{array}{l}E I y=E I v_{c}=\frac{\omega_{0} L X L^{3}}{12}-\frac{3 \omega_{0} L^{2} \times L^{2}}{16}-\frac{\omega_{0}}{94}\left(L-\frac{L}{2}\right)^{4} \\V_{c}=\frac{-41 \omega_{0} L^{4}}{384 E I}\end{array} Feel free to comment and ask clarifications. Thank you. ...
