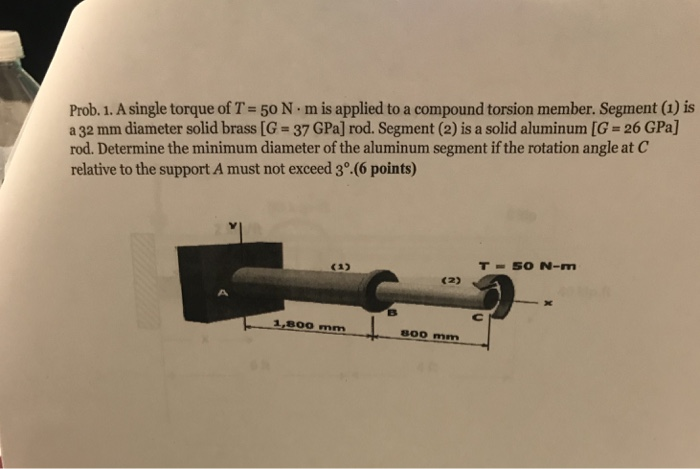

Question Prob. 1. A single torque of T-50 N-m is applied to a compound torsion member. Segment (1) is a 32 mm diameter solid brass [G 37 GPa] rod. Segment (2) is a solid aluminum [G-26 GPa] rod. Determine the minimum diameter of the aluminum segment if the rotation angle at C relative to the support A must not exceed 3° (6 points) 1,800 mm 800 mm

AUVUX3 The Asker · Mechanical Engineering

Transcribed Image Text: Prob. 1. A single torque of T-50 N-m is applied to a compound torsion member. Segment (1) is a 32 mm diameter solid brass [G 37 GPa] rod. Segment (2) is a solid aluminum [G-26 GPa] rod. Determine the minimum diameter of the aluminum segment if the rotation angle at C relative to the support A must not exceed 3° (6 points) 1,800 mm 800 mm

More

Community Answer

Honor Code

Solved 1 Answer

Soln\begin{array}{l}=\left(\frac{T L}{G J}\right)_{1}+\left(\frac{T L}{G J}\right)_{2} \\=\frac{50 \times 1.8 \mathrm{Nm} \times \mathrm{m}}{37 \times 10^{9} \mathrm{~N} / \mathrm{m}^{2} \times \frac{\pi \times\left(32 \times 10^{-3}\right)^{4}}{32} \times \mathrm{m}^{4}} \\+\frac{50 \times 0.8 \mathrm{~N} \times \operatorname{m\times m}}{26 \times 10^{9} \mathrm{~N} / \mathrm{m}^{2} \times \frac{\pi \times d_{2}^{4}}{32} \mathrm{~m}^{4}} \\\end{array}Note\theta_{C A}=0.02363+\frac{50 \times 0.8 \times 32}{26 \times 10^{9} \times \pi \times d_{2}^{4}}Given \theta_{C A}=3^{\circ}\begin{array}{l}=\frac{3 \times \pi}{180} \text { radians } \\=0.05236 .\end{array}\begin{array}{l} \therefore 0.05236=0.02363+\frac{1.57 \times 10^{-8}}{d_{2}^{4}} \\0.02873=\frac{1.57 \times 10^{-8}}{d_{2}^{4}} \\d_{2}^{4}=5.46 \times 10^{-7} d_{2}=0.02719 \mathrm{~m} \\\therefore d_{2}=27.19 \mathrm{~mm}\end{array}NOTE:as the same torque is transmitted through the whole steppedshaft, the angle rotation will get added from section to sectiontill the end i.e the support ...
