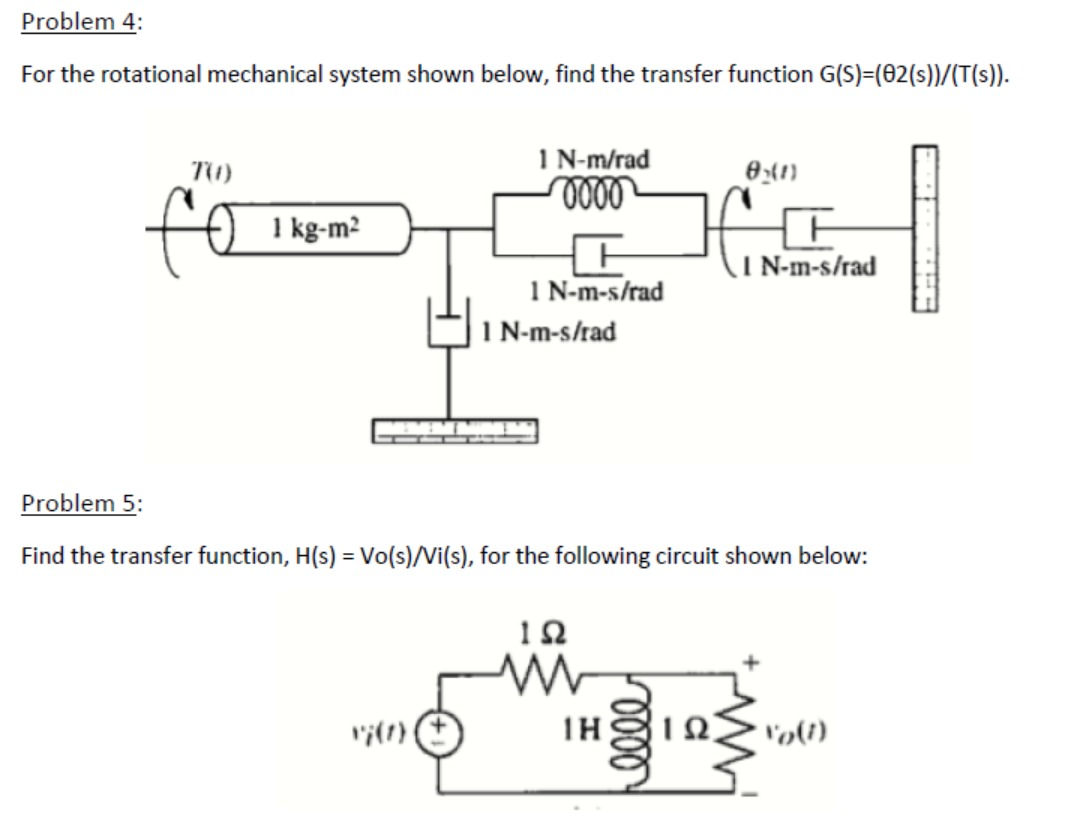

Question Problem 4: For the rotational mechanical system shown below, find the transfer function G(S)=(O2(s)/(T(s)). 1 N-m/rad 0000 -(1) 0 1 kg-m2 HH IN-m-s/rad 1 1 1 N-m-s/rad N-m-s/rad Problem 5: Find the transfer function, H(s) = Vo(s)/Vi(s), for the following circuit shown below: 112 AAM
