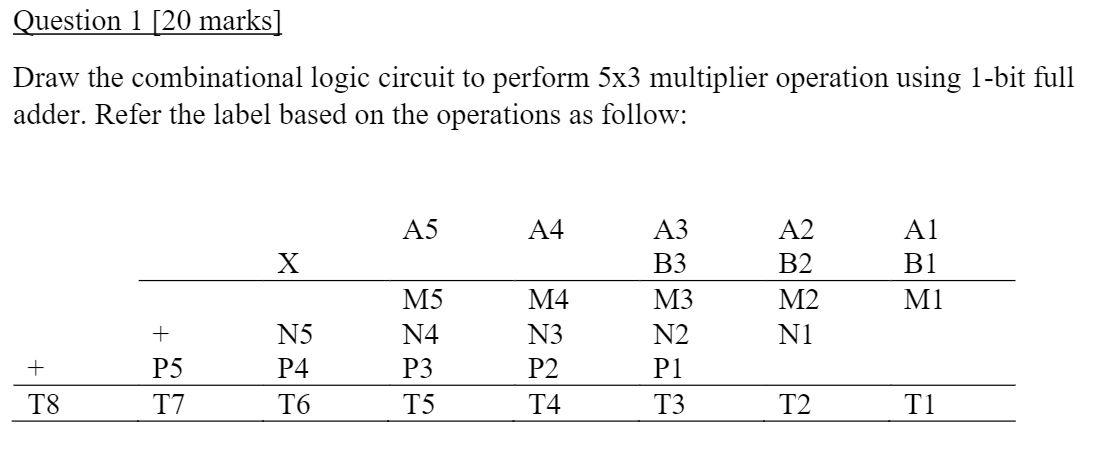

Question Question 1 [20 marks] Draw the combinational logic circuit to perform 5x3 multiplier operation using 1-bit full adder. Refer the label based on the operations as follow: A5 A4 X A2 B2 M2 N1 A1 B1 M1 A3 B3 M3 N2 P1 T3 M5 N4 P3 T5 + P5 17 M4 N3 P2 T4 N5 P4 T6 + T8 T2 T1
