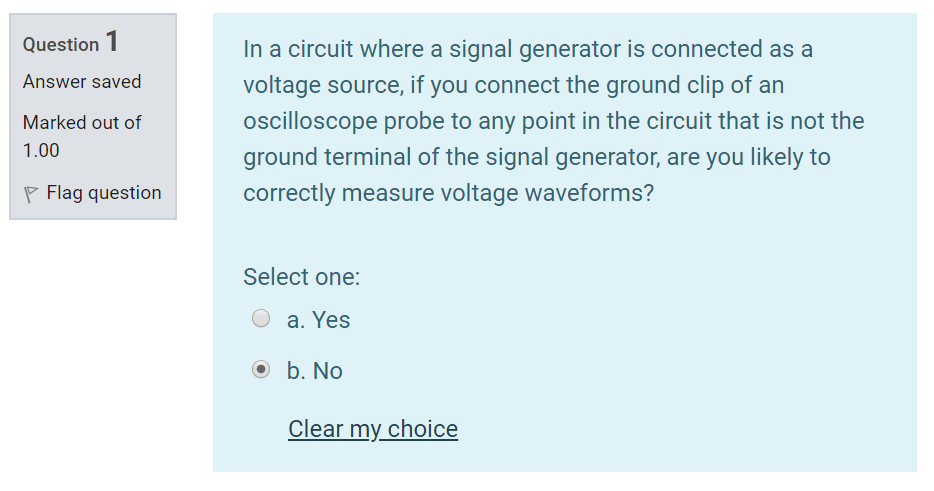

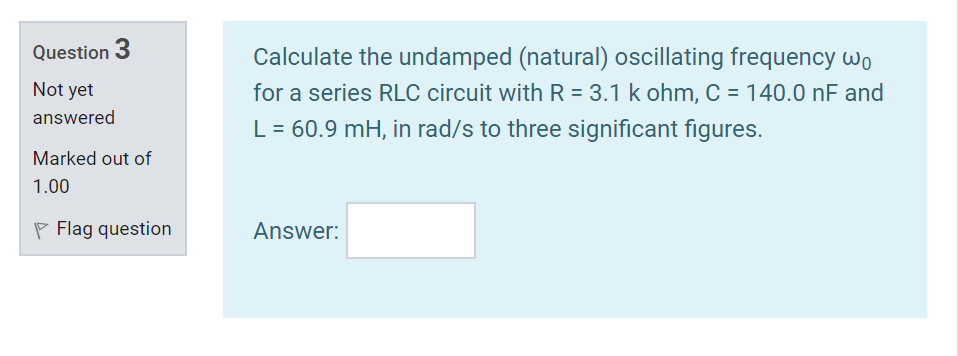

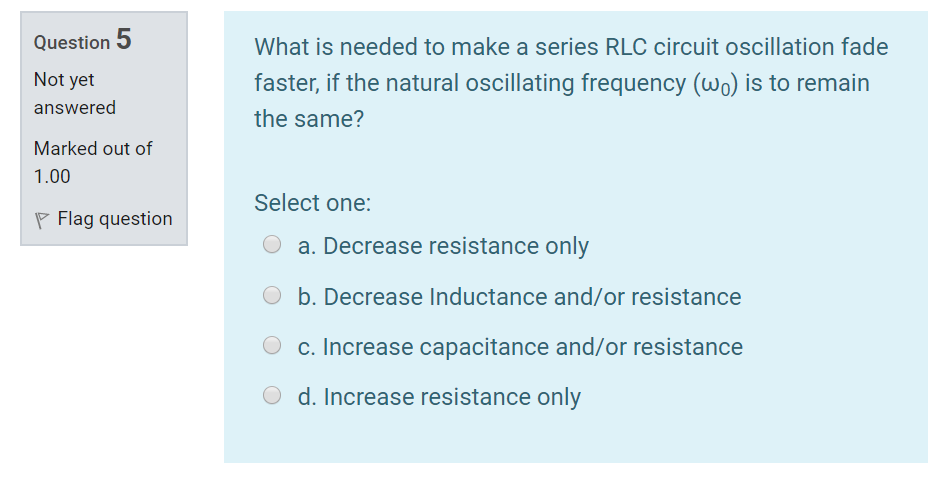

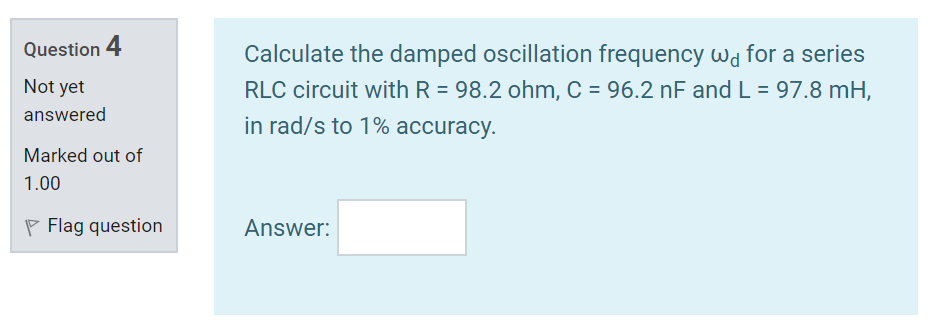

Question Question 1 Answer saved Marked out of 1.00 In a circuit where a signal generator is connected as a voltage source, if you connect the ground clip of an oscilloscope probe to any point in the circuit that is not the ground terminal of the signal generator, are you likely to correctly measure voltage waveforms? P Flag question Select one: O a. Yes . b. No Clear my choice Question 2 Not yet answered In the RL circuit shown, DC winding resistance is 35.8 ohms, and the resistor value is 275.8 ohms. When this circuit is in a steady state with a 0.5 V source voltage applied, find V_ (in V, to three significant figures). Marked out of 1.00 P Flag question + Vy- L or C Square wave source To Direct Coupled Y input of CRO U , Common Answer: Question 3 Not yet answered Calculate the undamped (natural) oscillating frequency wo for a series RLC circuit with R = 3.1 k ohm, C = 140.0 nF and L = 60.9 mH, in rad/s to three significant figures. Marked out of 1.00 P Flag question Answer: Question 4 Not yet answered Calculate the damped oscillation frequency wd for a series RLC circuit with R = 98.2 ohm, C = 96.2 nF and L = 97.8 mH, in rad/s to 1% accuracy. Marked out of 1.00 P Flag question Answer: Question 5 Not yet answered What is needed to make a series RLC circuit oscillation fade faster, if the natural oscillating frequency (wo) is to remain the same? Marked out of 1.00 P Flag question Select one: O a. Decrease resistance only O b. Decrease Inductance and/or resistance O c. Increase capacitance and/or resistance O d. Increase resistance only

SECTION 9-4 Parallel Capacitors 22. Determine C for each circuit in Figure 9-67. CORE9-67 10.000 pl 0.1 MF 47 pF 10 pF 0.001 F DOLF 0.001 F (A) (b)

12.5 If a 0, show that so that if Y = aX+b is an affine non-constant function of X, then ρχ.Y = ±1.

3.4 Find the system response y(t) x(t) yệt) h(t) a) Graphically b) Convolution integral equation x(t) h(t) 2 2 0 1 2 3 5 t 0 1 2 3 5 -21

Two thin parallel slits that are 0.0116 mm apart are illuminated by a laser beam of wavelength 585 nm. (a) On a very large distant screen, what is the total number of bright fringes (those indicating complete constructive interference), including the central fringe and those on both sides of it? Solve this problem without calculating all the angles! (b) At what angle, relative to the original direction of the beam, will the fringe that is most distant from the central bright fringe occur?

Group__ Hmwk carboxylic acid derivatives Name 1) Give the product and byproduct of each reaction below. ( 1 + Nu QH OH- HOCH.CH o L 'OCCHICH, 6 CH, whatarieven OH,O) HOCH, OH, 2) Give the reagents necessary to make each product. a certama memanas my - myoran smo

Photon Technologies, Inc., a manufacturer of batteries for mobile phones, signed a contract with a large electronics manufacturer to produce three models of lithium-ion battery packs for a new line of phones. The contract calls for the following: Photon Technologies can manufacture the battery packs at manufacturing plants located in the Philippines and Mexico. The unit cost of the battery packs differs at the two plants because of differences in production equipment and wage rates. The unit costs for each battery pack at each manufacturing plant are as follows: The PT-100 and PT-200 battery packs are produced using similar production equipment available at both plants. However, each plant has a limited capacity for the total number of PT-100 and PT-200 battery packs produced. The combined PT-100 and PT-200 production capacities are 175,000 units at the Philippines plant and 160,000 units at the Mexico plant. The PT-300 production capacities are 75,000 units at the Philippines plant and 100,000 units at the Mexico plant. The cost of shipping from the Philippines plant is $0.18 per unit, and the cost of shipping from the Mexico plant is $0.10 per unit. a. Develop a linear program that Photon Technologies can use to determine how many units of each battery pack to produce at each plant to minimize the total production and shipping cost associated with the new contract. b. Solve the linear program developed in part (a), to determine the optimal production plan. c. Use sensitivity analysis to determine how much the production and/or shipping cost per unit would have to change to produce additional units of the PT-100 in the Philippines plant. d. Use sensitivity analysis to determine how much the production and/or shipping cost per unit would have to change to produce additional units of the PT-200 in the Mexico plant.
