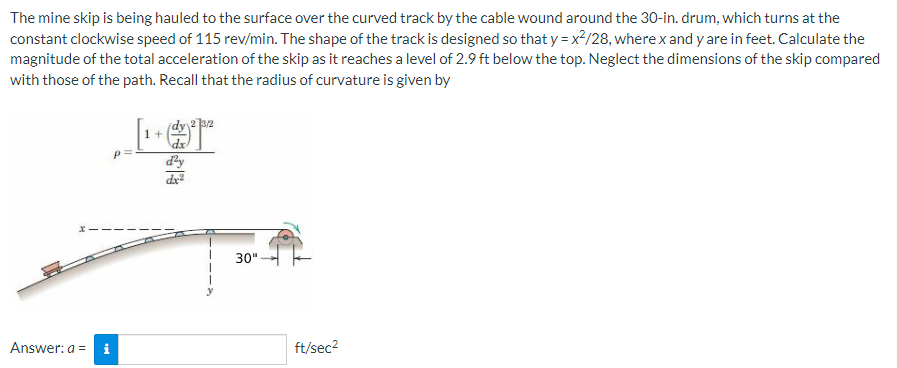

# Question The mine skip is being hauled to the surface over the curved track by the cable wound around the 30 -in. drum, which turns at the constant clockwise speed of $$115 \mathrm{rev} / \mathrm{min}$$. The shape of the track is designed so that $$y=x^{2} / 28$$, where $$x$$ and $$y$$ are in feet. Calculate the magnitude of the total acceleration of the skip as it reaches a level of $$2.9 \mathrm{ft}$$ below the top. Neglect the dimensions of the skip compared with those of the path. Recall that the radius of curvature is given by Answer: $$a=$$ $$\mathrm{ft} / \mathrm{sec}^{2}$$

ZF1UOT The Asker · Mechanical Engineering

Transcribed Image Text: The mine skip is being hauled to the surface over the curved track by the cable wound around the 30 -in. drum, which turns at the constant clockwise speed of $$115 \mathrm{rev} / \mathrm{min}$$. The shape of the track is designed so that $$y=x^{2} / 28$$, where $$x$$ and $$y$$ are in feet. Calculate the magnitude of the total acceleration of the skip as it reaches a level of $$2.9 \mathrm{ft}$$ below the top. Neglect the dimensions of the skip compared with those of the path. Recall that the radius of curvature is given by Answer: $$a=$$ $$\mathrm{ft} / \mathrm{sec}^{2}$$
More
Transcribed Image Text: The mine skip is being hauled to the surface over the curved track by the cable wound around the 30 -in. drum, which turns at the constant clockwise speed of $$115 \mathrm{rev} / \mathrm{min}$$. The shape of the track is designed so that $$y=x^{2} / 28$$, where $$x$$ and $$y$$ are in feet. Calculate the magnitude of the total acceleration of the skip as it reaches a level of $$2.9 \mathrm{ft}$$ below the top. Neglect the dimensions of the skip compared with those of the path. Recall that the radius of curvature is given by Answer: $$a=$$ $$\mathrm{ft} / \mathrm{sec}^{2}$$
&#12304;General guidance&#12305;The answer provided below has been developed in a clear step by step manner.Step1/2At $$\mathrm{{y}={2.9}{f}{t},}$$ the value of x:\begin{align*} \mathrm{{y}} &= \mathrm{\frac{{x}^{{2}}}{{28}}}\\[3pt]\mathrm{{2.9}} &= \mathrm{\frac{{x}^{{2}}}{{28}}}\\[3pt]\mathrm{{x}} &= \mathrm{{9.011}{f}{t}} \end{align*}Radius of curvature at $$\mathrm{{x}={9.011}{f}{t}:}$$\( \begin{align*} \mathrm{\rho} &= \mathrm{\frac{{{\left[{1}+{\left(\frac{{\left.{d}{y}\right.}}{{\left.{d}{x}\right.}}\right)}^{{2}}\right]}^{{\frac{{3}}{{2}}}}}}{{\frac{{{d}^{{2}}{y}}}{{{\left.{d}{x}\right.}^{{2}}}}}}}\\[3pt]\mathrm{\frac{{{\left.{d}{y}\right.}}}{{{\left.{d}{x}\right.}}}} &= \mathrm{\frac{{x}}{{14}}}\\[3pt]\mathrm{\frac{{{d}^{{2}}{y}}}{{{\left.{d}{x}\right.}^{{2}}}}} &= \mathrm{\frac{{1}}{{14}}}\\[3pt]\mathrm{\rho} &= \mathrm{\frac{{{\left[{1}+{\left(\frac{{x}}{{14}}\right)}^{{2}}\right]}^{{\frac{{3}}{{2}}}}}}{{\frac{{1}}{{14}}}}}\\[3pt] &= \mathrm{{14}{\left[{1}+{\left(\frac{{x}}{{14}}\right)}^{{2}}\right]}^{{\frac{{3}}{{2}}}}}\\[3pt] &= \mathrm{{14}{\left[{1}+{\left(\frac{{9.011}}{{ ... See the full answer
