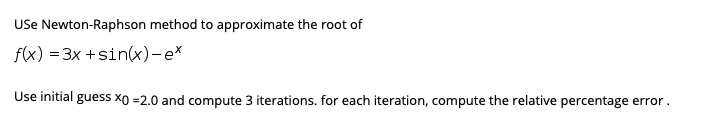

USe Newton-Raphson method to approximate the root of

f(x)=3x + sin (x) -e^x

Use initial guess x_{0 =2.0 and compute 3 iterations. for
each iteration, compute the relative percentage error .}

Community Answer

Honor CodeSolved 1 Answer

See More Answers for FREE

Enhance your learning with StudyX

Receive support from our dedicated community users and experts

See up to 20 answers per week for free

Experience reliable customer service

Get Started

GIVEN : f(x) = 3x + sin (x) - ex.  [ This gives : f'(x) = 3 + cos(x) - ex ] x0 = 2.0 n = 3 WE KNOW : Relative error at each step is given by :                           \epsilon_{\text {relative }}=\frac{\left|x_{i}-x_{i-1}\right|}{x_{i}} STEP 1 : x0 = 2.0  f(x0) = 3(2) + sin(2) - e2 = - 0.479759 f'(x0) = 3 + cos(2) - e2 = - 4.805203 x1 = x0 - f(x0) / f'(x0) = 1.900158 \epsilon_{\text {relative }}=\frac{\left|x_{i}-x_{i-1}\right|}{x_{i}}=\frac{|1.900158-2|}{1.900158}=0.052505 STEP 2 : x1 = 1.900158 f(x1) = 3(1.900158) + sin(1.900158) - e1.900158 = - 0.040230 f'(x1) = 3 + cos(1.900158) - e1.900158 = - 4.01039 x2 = x1 - f(x1) / f'(x1) = 1.890127 \epsilon_{\text {relative }}=\frac{\left|x_{i}-x_{i-1}\right|}{x_{i}}=\frac{|1.890127-1.900158|}{1.890127}=0.005307 STEP 3 : x2 = 1.890127 f(x2) = 3(1.890127) + sin(1.890127) - e1.890127 = - 0.000383 f'(x2) = 3 + cos(1.890127) - e1.890127 = - 3.93414 x3 = x2 - f(x2) / f'(x2) = 1.890030 <img/> ...
