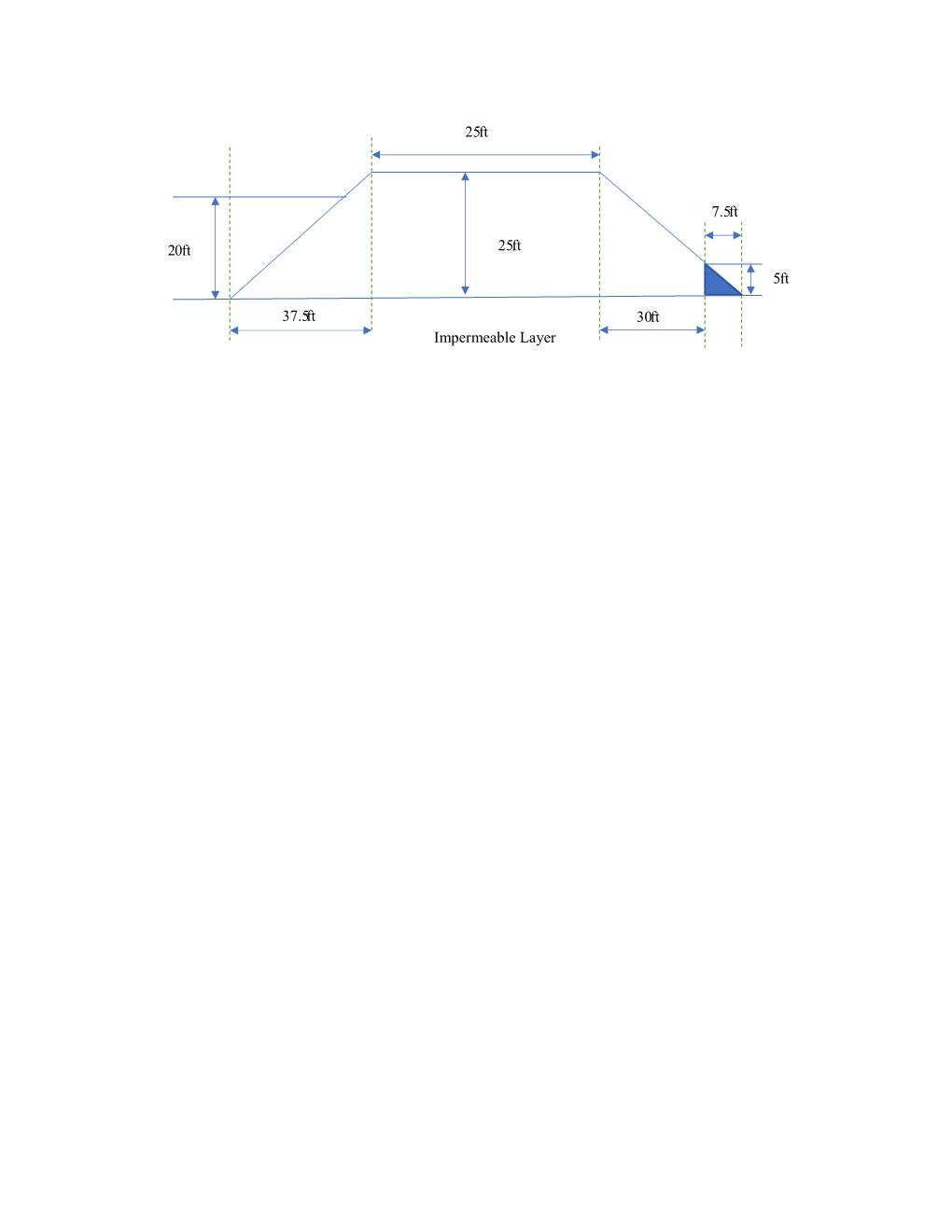

# Question Use the Dupuit method to construct the upper flow boundary ofseeping water through the dam shown in Figure with 20ft of upstreamwater. There is a 7.5ft toe filter with 5ft of downstream water.The unit weight of permeability of the dam material are 100pcf and1.0*10-7cm/sec respectively. Calculate the seepage lossand effective stress at a point 40ft from the toe of the dam at thebottom most point of the dam. 25ft 7.5ft 20ft 25ft 5ft 37.ft 30ft Impermeable Layer

V3O0VH The Asker · Civil Engineering

Use the Dupuit method to construct the upper flow boundary of seeping water through the dam shown in Figure with 20ft of upstream water. There is a 7.5ft toe filter with 5ft of downstream water. The unit weight of permeability of the dam material are 100pcf and 1.0*10-7cm/sec respectively. Calculate the seepage loss and effective stress at a point 40ft from the toe of the dam at the bottom most point of the dam.

Transcribed Image Text: 25ft 7.5ft 20ft 25ft 5ft 37.ft 30ft Impermeable Layer
